Auto Shut Off for Irons


Auto Shut-off
Install a shock sensor on irons, shock sensor provides ON/OFF signal continuously when user keep using irons, irons will keep working at this situation; once the signal maintains at ON or OFF signal for a certain time, irons will be automatic power-off by program design in order to prevent dangers.

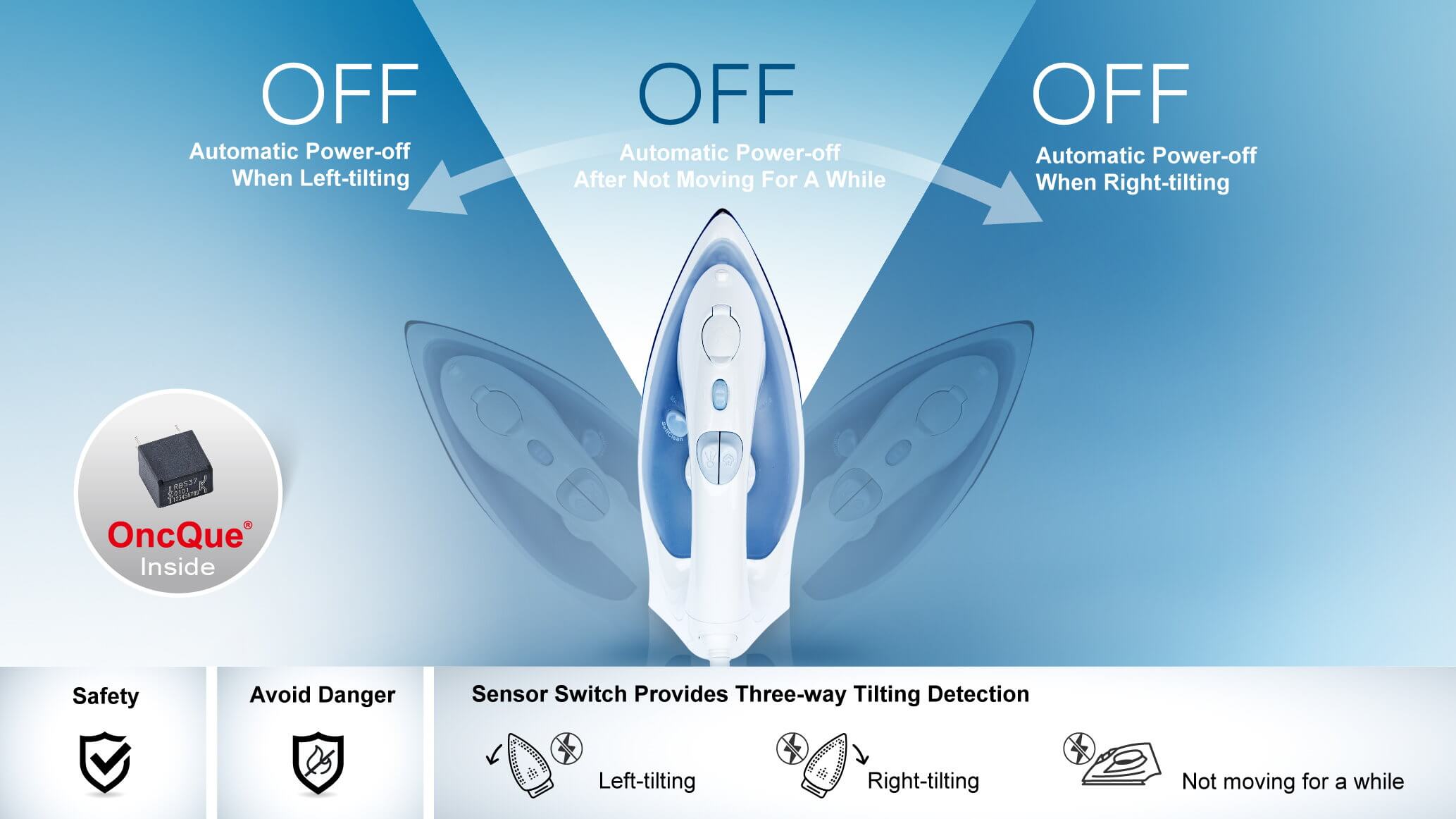

3-way Auto Shut-off
Install a three-way tilt sensor on irons, when irons left-leaning, right-leaning or in upright status, irons will be automatic power-off after a while due to High/Low signals change in order to prevent danger.


  Recommend Model


OncQue RBS020902T SMD Shock Sensor


  • Switch State: SMD Normal Open
  • Suitable for Horizontal PCB
  • Dimension: Ø3*7.8 mm




OncQue RBS370101 Photoelcetric 3-Way Tilt Sensor



  • Operating Angle: 45°
  • Type: DIP
  • Suitable for Horizontal PCB
  • Dimension: 8*10.5*10 mm




OncQue EIC010100 Electric Iron Controller Automatically Shut Off Module


Condition
Function
Moving forward and backward
Start heating
Over 8 minutes in Vertical position
Stop heating
Over 30 seconds in horizontal position without movement
Stop heating
Over 30 seconds when left or right tilted
Stop heating
