Shock & Acceleration Sensor Switch

  • RBS02 Shock & Acceleration Sensor Switch
  • RBS020902 Shock Sensor
  • RBS021002 Shock Switch
  • RBS020602 Shock Switch
  • RBS020802 Shock Switch
  • RBS021202 Shock Sensor
  • RBS021102 Shock Sensor
  • RBS02 Shock & Acceleration Sensor
  • RBS02 SMD Shock Sensor
● Description: Ball-Contact / Ball Rolling
● Function: Shock detecting
● Model: RBS020602 / RBS020802 / RBS020902 / RBS021002 / RBS021102 / RBS021202
● Certification: RoHS, REACH, Patent
● Original Place: Taiwan
● 100% Inspection with High Quality

Please select which you want to ask the following product specifications:

*Model:



RBS020602 shock switch
RBS020802 shock switch

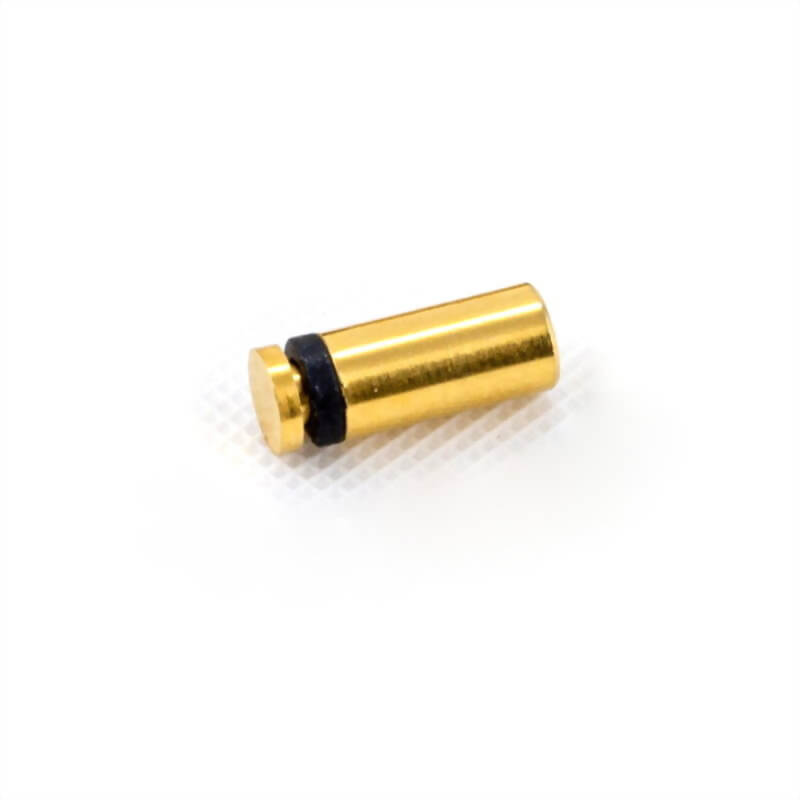

RBS020902shock sensor
RBS021002 shock switch
RBS021102 shock sensor
RBS021202 shock sensor
Model RBS020602
RBS020802
RBS020902
RBS021002 RBS021102
RBS021202

Operating Angle

θ <20°
θ <20°
θ <2
-- θ <10°
--
Switch state
SMD Normal Open
SMD Normal Open
SMD Normal Open
SMD
SMD Normal Open
SMD
Dimension(mm)
Φ4*13.6
Φ3*6.8
Φ3*7.8
Φ3*8.4
Φ4*9.6
Φ3*10.4
PCB direction
Horizontal PCB
Horizontal PCB
Horizontal PCB
Horizontal PCB
Horizontal PCB
Horizontal PCB
IR Reflow Manual Soldering Suggest Manual Soldering Suggest Peak temp.=255~260°C Manual Soldering Suggest Peak temp.=255~260°C
Manual Soldering Suggest


Electrical Characteristics

  • Contact Resistance(RBS020602、RBS020802、RBS020902、RBS021102): 10 Ω max.
  • Contacting Rate: 10 mA, 5 VDC
  • Insulation Resistance: 50 MΩ min. at 100 VDC
  • Dielectric Strength: 50 VDC min. for 1 minute
  • Capacitance: 5pF max.


Reliable Test Items

  • Operating Temperature: 25°C ~ 85°C
  • Storage Temperature: -40°C ~ 85°C
  • Humidity: 40°C / 95%RH
  • Mechanical Life: 2 HZ,horizontal  1,000,000 times
  • Electrical Life: 100,000 times


Current / Voltage Suggested

Input Current (mA)
Operating Voltage (V)
Condition
1.0
5
--

  • Function: Shock detecting
  • The RBS021002 , RBS021202 acts like a normally closed switch which chatters open and closed as it is tilted or vibrated. Note that the RBS021002 , RBS021202 is not guaranteed to be closed --- occasionally the sensing mechanism may remain open when at rest. The engineer should design his or her software to look for high-to-low and low-to-high edge transitions rather than an open or closed state of the switch.
  • Tiny size, suitable for small space.
  • Wing-shaped terminals, a feature enables half body of the sensor switch to be buried into PCB.
  • Gold-plated ball and terminals, low possibility of oxidization.
  • All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
  • Simple ON and OFF signals, easy for design.
  • RoHS compliance, an ideal substitute for mercury switch.
  • A more economical tilt and rotation detection option than IC design solution.
  • Do not try to clean the switch with a solvent or similar substance after the soldering process.
  • All made in Taiwan and examined before shipment.
  • Suggestion for usage: For vibration usage or application, we suggest to add hysteresis for IC; if vibration is heavy, optical type of sensor switch is recommended.
  • For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.

As for the Roll Ball Switches, a tiny ball in the switch rolls when motion is detected, triggering a contact of metal terminals. This will generate the conductive or non-conductive status. They provide accurate control for a wide variety of applications like any angle change detecting or vibration detecting and so on.


Case of RBS02 series




Iron

Function : Automatic Power-off
Model : RBS020902



Wireless mouse

Function : Upside Down detecting

Model : RBS020902


Electric Car Key

Function : Automatic Start Up

Model : RBS020902
