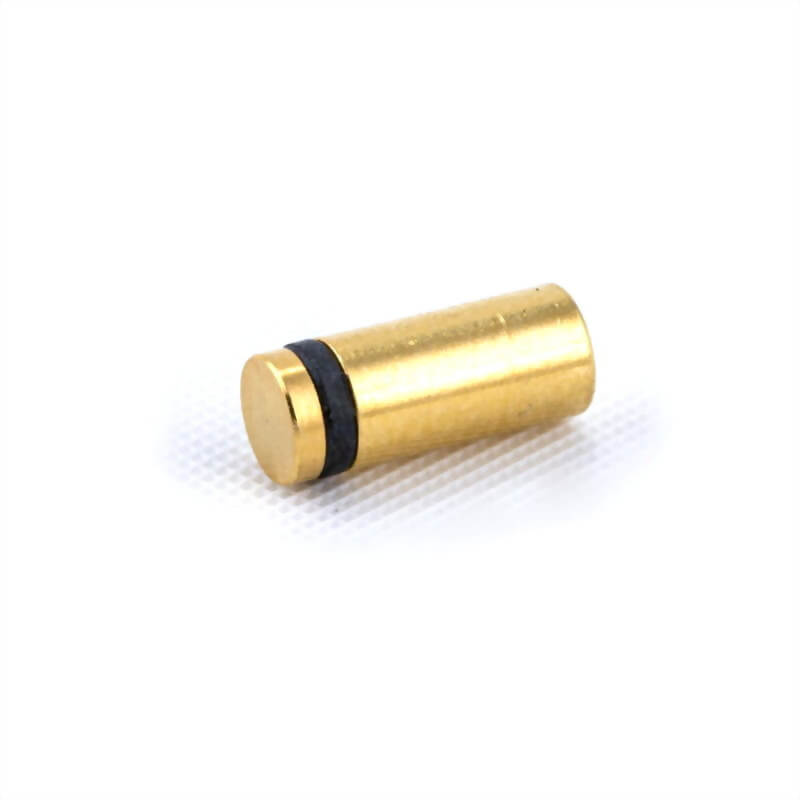

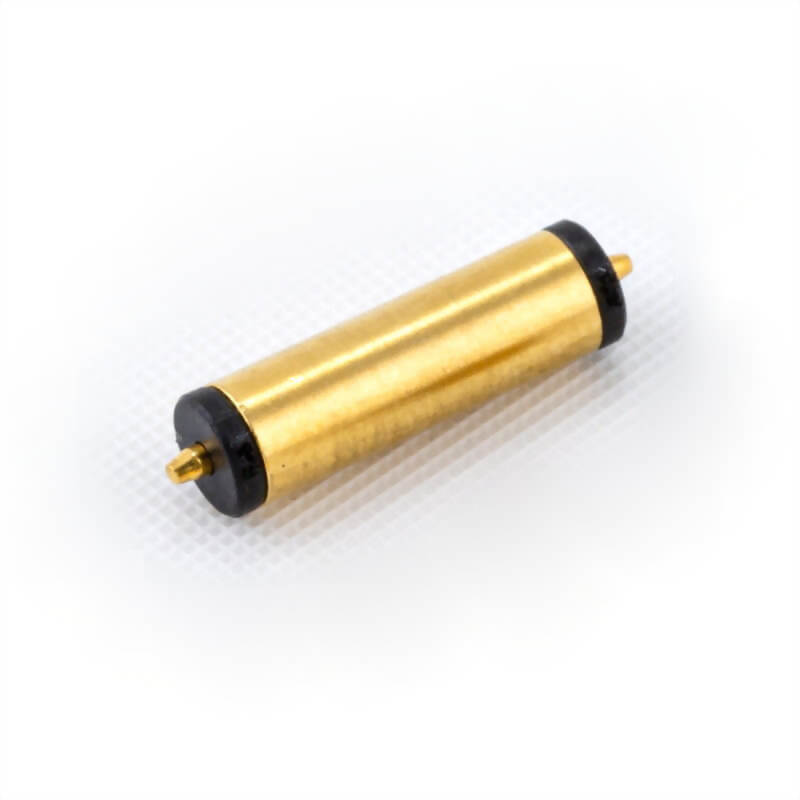

RBS020602 / RBS020802 / RBS020902 / RBS021102
Description:Ball-Contact
Function: Horizontal Tilt Detecting / Vertical Up-Side down detecting
Certification: RoHS,REACH,Patent
Trade Term: EX-WORK
Original Place:Taiwan

Please select which you want to ask the following product specifications:

*Model:







Model RBS020602
RBS020802
RBS020902
RBS021102
Operating Angle θ <20° θ <20° θ <20° θ <10°
Switch State Normal Open
Normal Open
SMD Normal Open
SMD Normal Open
Dimension(mm)
Φ4*13.6
Φ3*6.8
Φ3*7.8
Φ4*9.6
PCB direction
Horizontal PCB
Horizontal PCB
Horizontal PCB
Horizontal PCB
IR Reflow
-- -- Peak temp = 255~260°C Peak temp = 255~260°C


Electrical Characteristics

  • Contact Resistance: 10Ω max.
  • Contacting Rate: 10mA, 5VDC
  • Insulation Resistance: 50MΩ min. at 100VDC
  • Dielectric Strength: 50 VDC min. for 1minute
  • Capacitance: 5pF max.


Reliable Test Items

  • Operating Temperature: -25°C ~ 85°C
  • Storage Temperature: -40°C ~ 85°C
  • Humidity: 40°C / 95%RH
  • Mechanical Life: 2 HZ,horizontal  1,000,000 times
  • Electrical Life: 100,000 times


Current/Voltage Suggested

Input Current (mA)
Operating Voltage (V)
Condition
1.0
5
--


  • Function: Horizontal Tilt Detecting / Vertical Up-Side down detecting
  • Tiny size, suitable for small space.
  • Wing-shaped terminals, a feature enables half body of the sensor switch to be buried into PCB.
  • Gold-plated ball and terminals, low possibility of oxidization.
  • All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
  • Simple ON and OFF signals, easy for design.
  • RoHS compliance, an ideal substitute for mercury switch.
  • A more economical tilt and rotation detection option than IC design solution.
  • Do not try to clean the switch with a solvent or similar substance after the soldering process.
  • All made in Taiwan and Examined before shipment.
  • Suggestion for usage: For vibration usage or application, we suggest to add hysteresis for IC; if vibration is heavy, optical type of sensor switch is recommended.
  • For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.

As for the Roll Ball Switches, a tiny ball in the switch rolls when motion is detected, triggering a contact of metal terminals. This will generate the conductive or non-conductive status.They provide accurate control for a wide variety of applications like any angle change detecting or vibration detecting and so on.


Case of RBS02 series




Filter / Water Filter / Filter Cartridge
Function: Counting Number of Times for Filter Cartridge
Model: RBS020902



Screen / Monitor
Function: Upside Down detecting
Model: RBS020902



Electric Car Key / Remote Control
Function :  Automatic Start Up
Model : RBS020902



Sewing Machine
Function: Safety Mechanism
Model : RBS020902



Smart Electric Fishing Bobbers (Floats)
Function: Notify when the fish is hooked
Model : RBS020902
