Safety Mechanism for Sewing Machines


When users open the material box of sewing machines to supplement or change materials, tilt sensors will change ON/OFF signal because the cover of the material box is opened and make sewing machines stop working to prevent users from injury.
Angles option of tilt sensor: 15°, 20°, 30°, 45°, 65°


Recommend Model

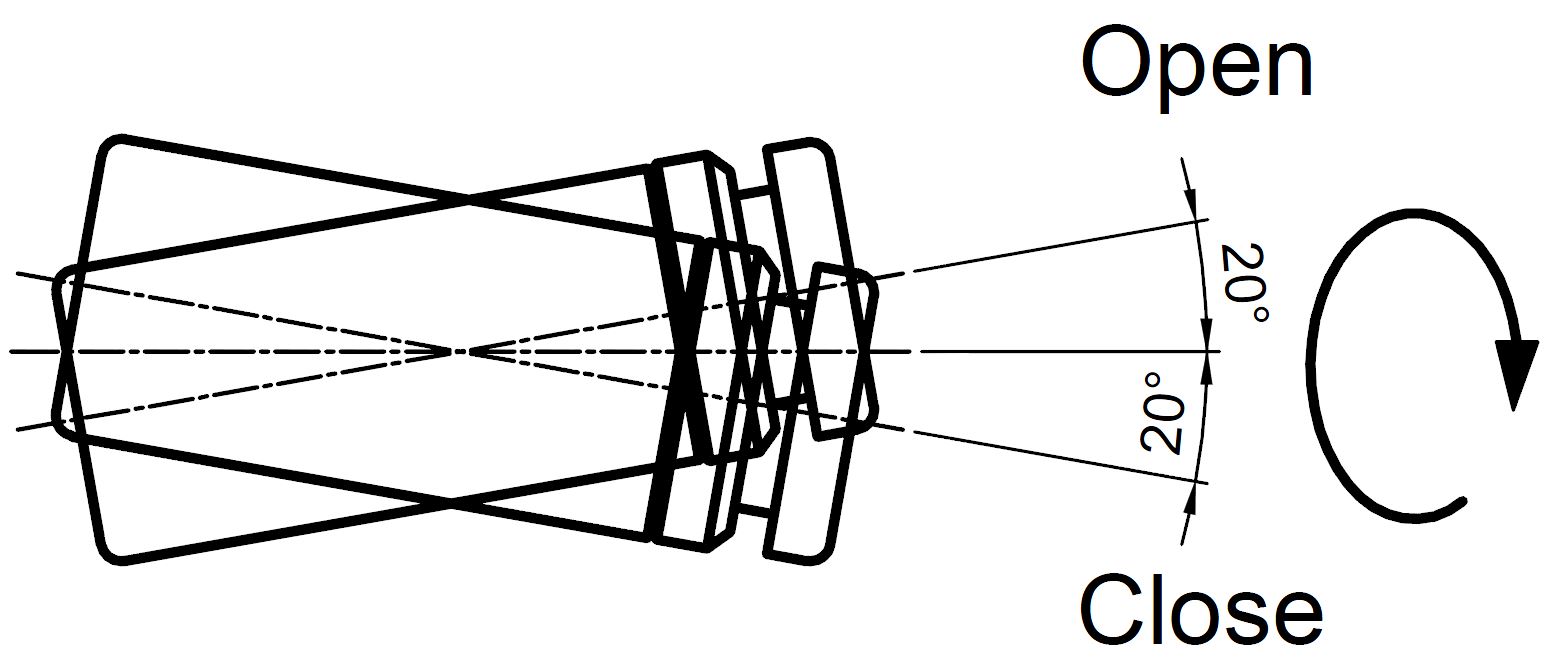

OncQue RBS020902 SMD Tilt Angle detecting Sensor Switch


  • Operating Angle: <20°
  • Switch State: SMD Normal Open
  • Suitable for Horizontal PCB
  • Dimension: Ø3*7.8 mm

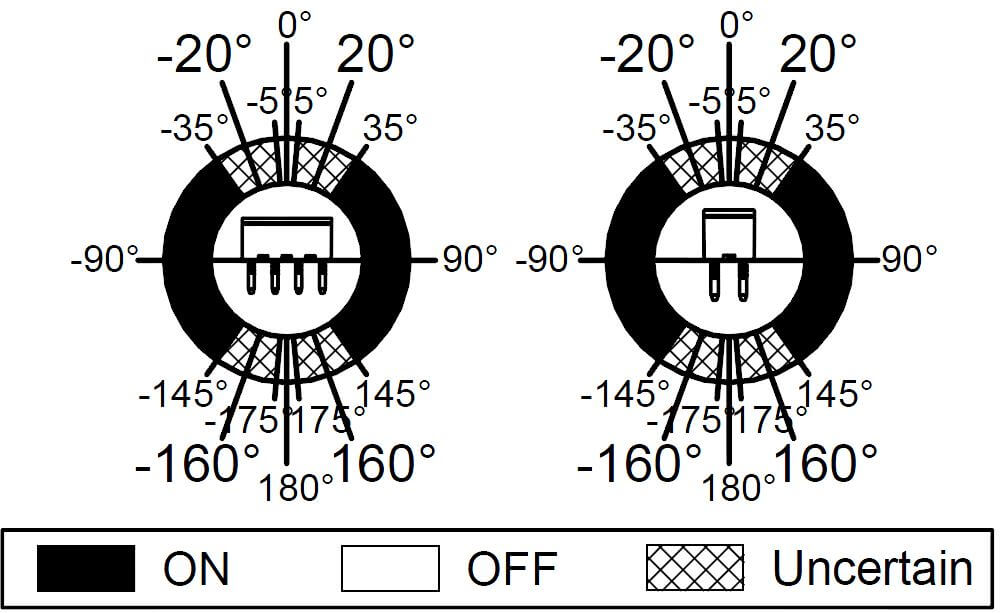

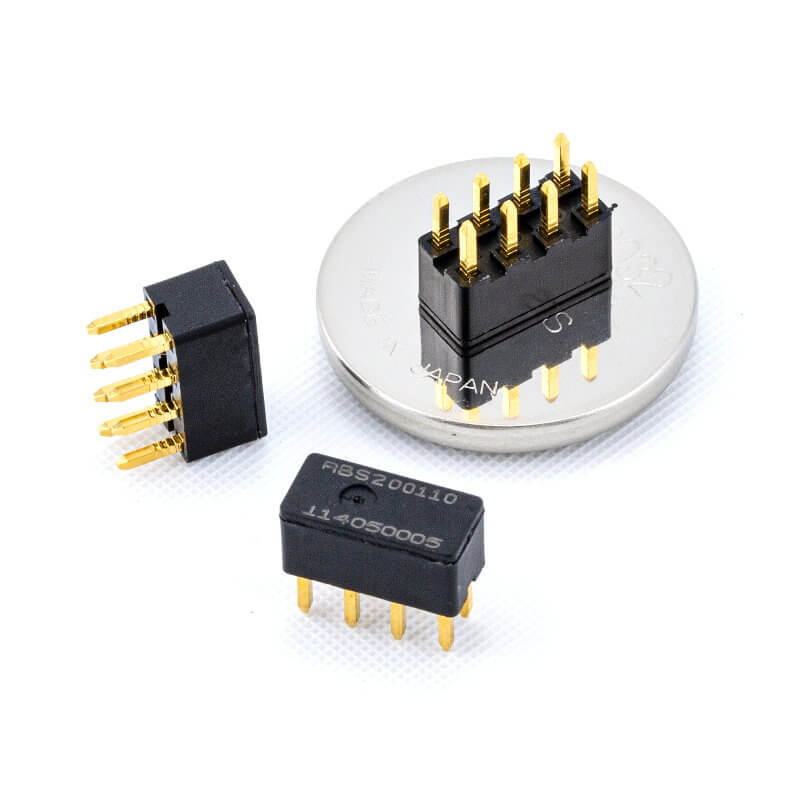

OncQue RBS200112 20°Tilt detecting for 4 directions Sensor Switch


  • Operating Angle: 20°
  • Switch State: DIP Normal Open
  • Suitable for Horizontal PCB
  • Dimension: 9.58*4.5*4.5 mm

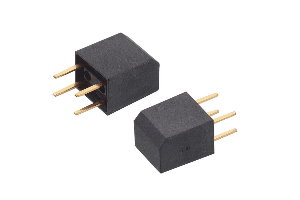

OncQue RBS151100 One Axis 15° Tilt detecting Sensor Switch


  • One Axis 15° tilt detecting in Horizontal position installed above or under PCB
  • Switch State: DIP Normal Open
  • Dimension: 5*6*7 mm
