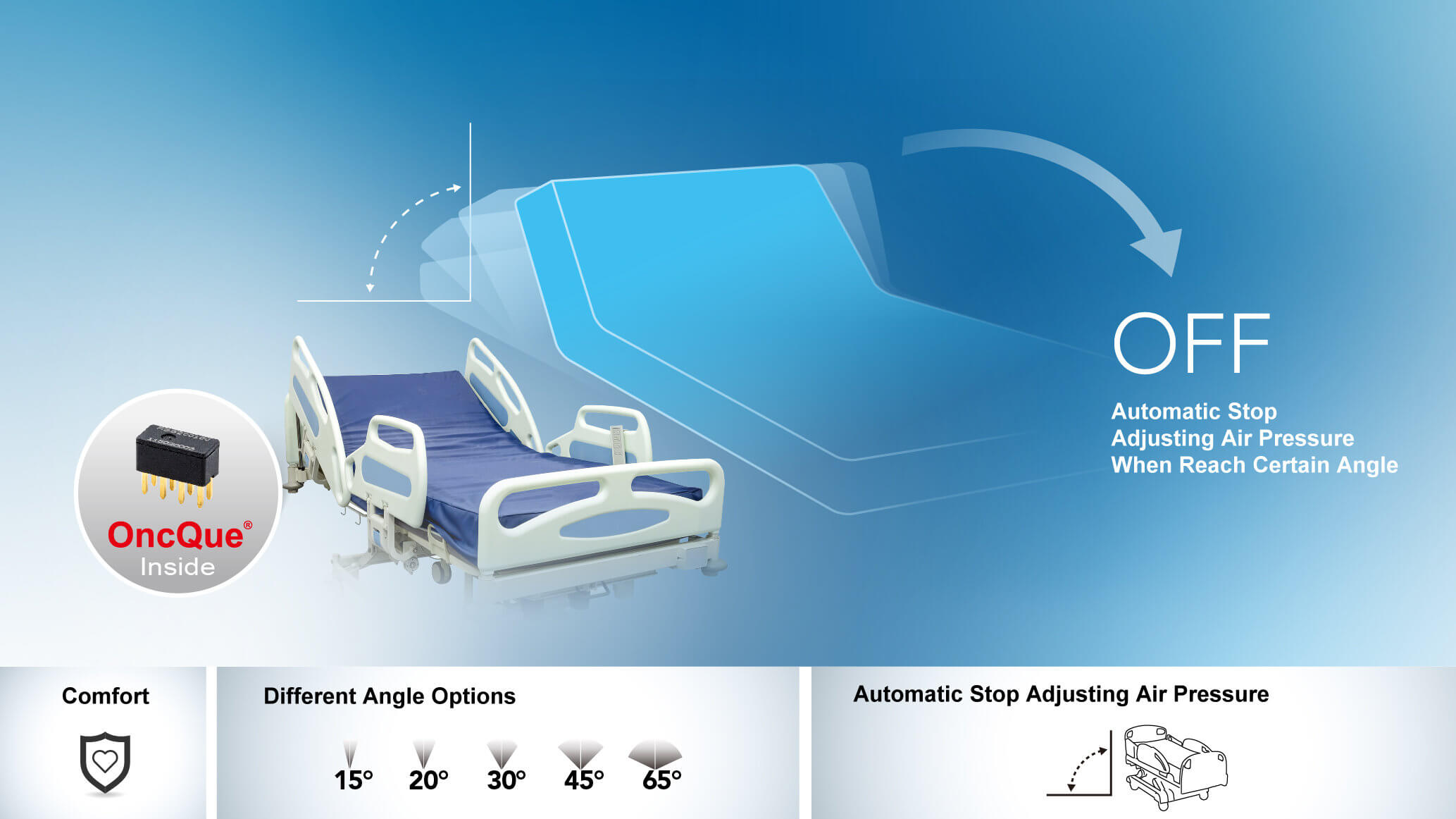

Medical Mattress Air Pressure Adjustment


Install tilt sensor switches on medical mattresses to detect if the air pressure has adjusted the mattress to the right position by the change of ON/OFF signals sent by the tilt sensor.  Make sure the users are at the most comfortable position.

Angles option of tilt sensor: 15°, 20°, 30°, 45°, 65°


  Video





  Recommend Model


OncQue RBS070410 45°Tilt Detecting within a 360° radius Sensor Switch

  • Operating Angle: 45°
  • Switch State: DIP Normal Close
  • Suitable for vertical PCB
  • Dimension: 6.5*6.5*8.5 mm

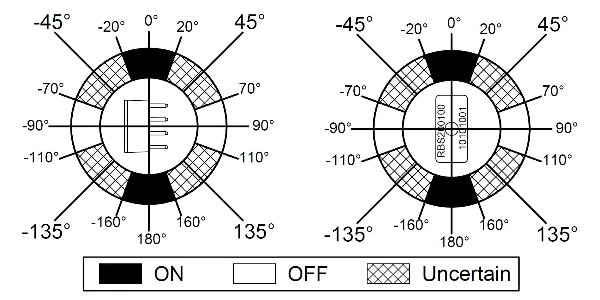

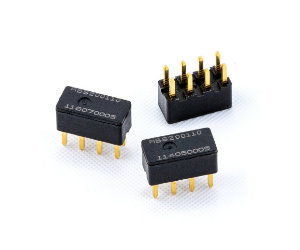

OncQue RBS200100 45° Tilt Detecting for 4 directions in Vertical mode Sensor Switch


  • Operating Angle: 45°
  • Switch State: DIP Normal Close
  • Suitable for Vertical PCB
  • Dimension: 9.58*4.5*4.5 mm

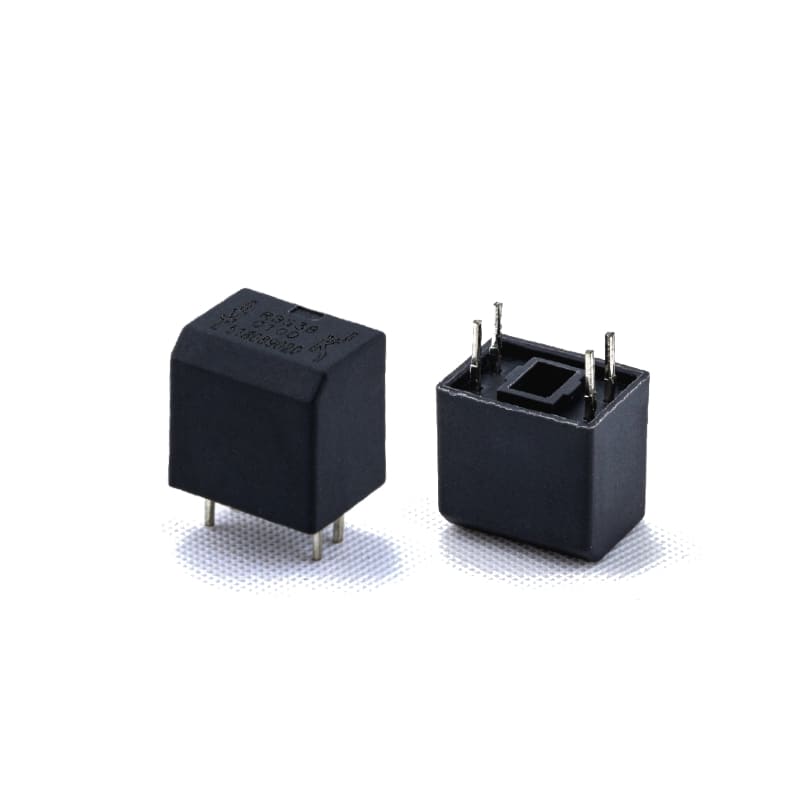

OncQue RBS380100 Photoelectric 45° within a 360° radius Sensor Switch


  • Operating Angle: 45° within a 360° radius
  • Type: DIP
  • Suitable for Vertical PCB
  • Dimension: 8*10.5*12 mm
