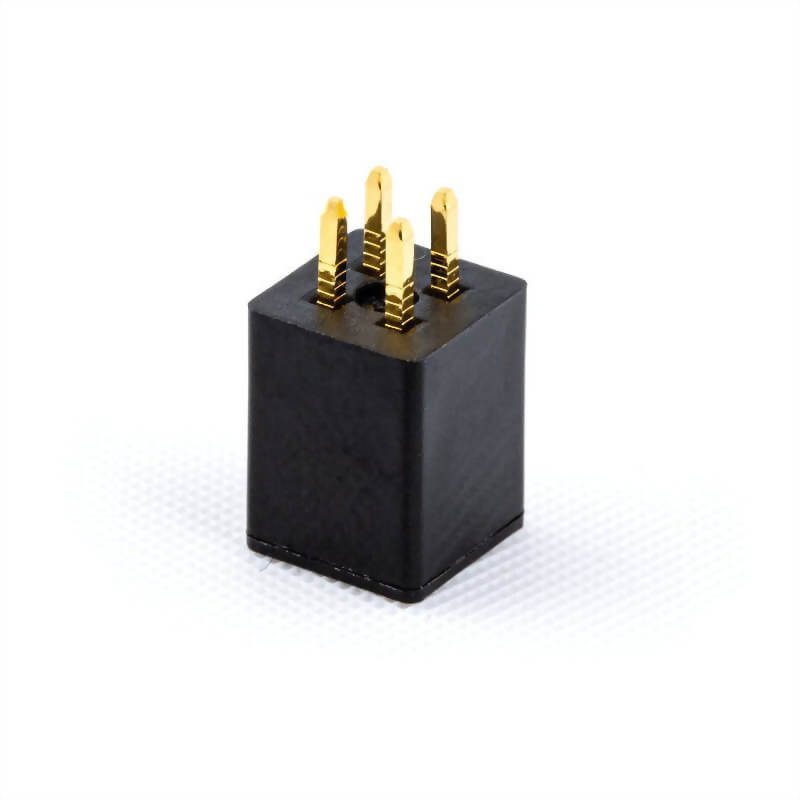

  • tilt switch RBS070310
  • tilt switch RBS070412

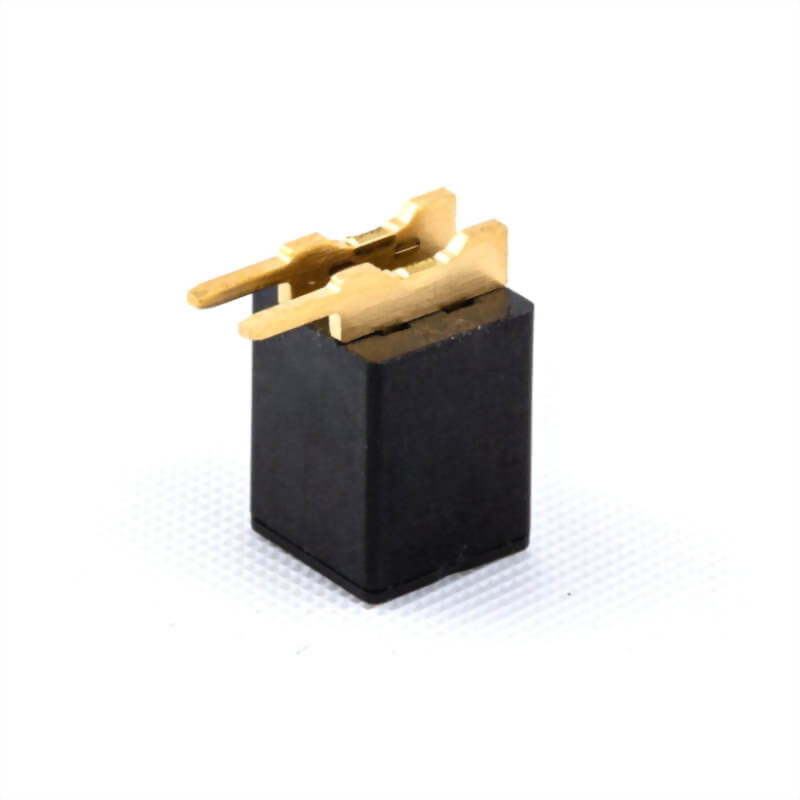

  • tilt switch RBS070500
  • tilt switch RBS070600
45 degree detecting Tilt Switch
Model: RBS070310 / RBS070410 / RBS070412 / RBS070500 / RBS070600
Description: Ball-Contact Switch
Function: 45° Tilt detecting within a 360° radius / Up-Side Down detecting
Certification: RoHS, REACH, Patent
Trade Term: EX-WORK
Original Place: Taiwan

Please select which you want to ask the following product specifications:

*Model:



tilt switch RBS070310
tilt switch RBS070410
tilt switch RBS070412
tilt switch RBS070500
tilt switch RBS070600
Model
RBS070310
RBS070410
RBS070412
RBS070500
RBS070600
Angle
45°
45°
45°
45°
45°
Switch State
DIP Normal Close
DIP Normal Close
DIP Normal Close
SMD Normal Close
DIP Normal Close
Dimension(mm)
6.5*6.5*8.5
6.5*6.5*8.5
6.5*6.5*8.5
6.5*6.5*8.5
6.5*6.5*8.5
PCB direction
Horizontal PCB
Vertical PCB
sloping PCB at 45°
Horizontal / Vertical PCB
Vertical PCB
IR Reflow -- -- -- Peak temp=255~260°C --
Feature
-- -- -- Resistant to magnetization
Resistant to magnetization


Electrical Characteristics

  • Contacting Rate: 10mA, 5VDC
  • Contact Resistance: 10Ω max.
  • Insulation Resistance: 1000MΩ min. at 100VDC
  • Dielectric Strength: 500VDC min. for 1minute
  • Capacitance: 5pF max.


Reliable Test Items

  • Operating Temperature: -25°C ~ 85°C
  • Storage Temperature: -40°C ~ 85°C
  • Humidity: 40°C / 95%RH
  • Mechanical Life: 2 HZ,horizontal  1,000,000 times
  • Electrical Life: 100,000 times


Current/Voltage Suggested

Input Current(mA) Operating Voltage(V)
Condition
1.0 5 --


  • Function:45° Tilt Detecting within a 360° radius, Up-Side Down Detecting
  • Housing made of high insulation plastic material, free from electric conduction and rust problem.
  • Gold-plated ball and terminals, low possibility of oxidization.
  • All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
  • Simple ON and OFF signals, easy for design.
  • RoHS compliance, an ideal substitute for mercury switch.
  • more economical tilt and rotation detection option than IC design solution.
  • Do not try to clean the switch with a solvent or similar substance after the soldering process.
  • Suggestion for usage: For vibration usage or application, we suggest to add hysteresis for IC; if vibration is heavy, optical type of sensor switch is recommended.
  • All made in Taiwan and examined before shipment.
  • For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.

As for the Roll Ball Switches, a tiny ball in the switch rolls when motion is detected, triggering a contact of metal terminals. This will generate the conductive or non-conductive status.They provide accurate control for a wide variety of applications like any angle change detecting or vibration detecting and so on.


Case of RBS07 series



Fan

Function : Auto shut-off / Automatic Power-off
Model : RBS070310 / RBS070410



Smart Crutch

Function : Falling down detection

Model : RBS070310 / RBS070410

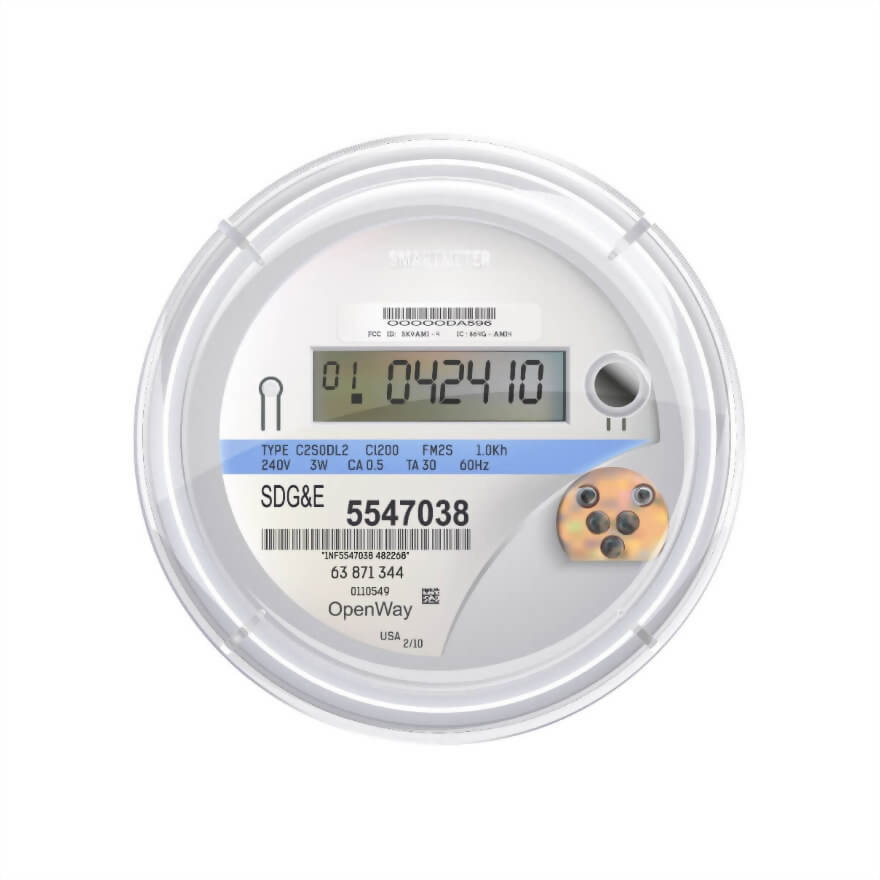

Smart Meter

Function : Anti-tamper

Model :RBS070500 / RBS070600


Medical Mattress

Function : Air Pressure Adjustment

Model : RBS070310 / RBS070410



Home Security

Function : Intrusion detection for Windows / Garage Doors detection

Model : RBS070310 / RBS070410
