Optical Tip-Over Switch for Vertical Mount PCB

  • RBS38 Optical Tip-Over Switch for Vertical PCB

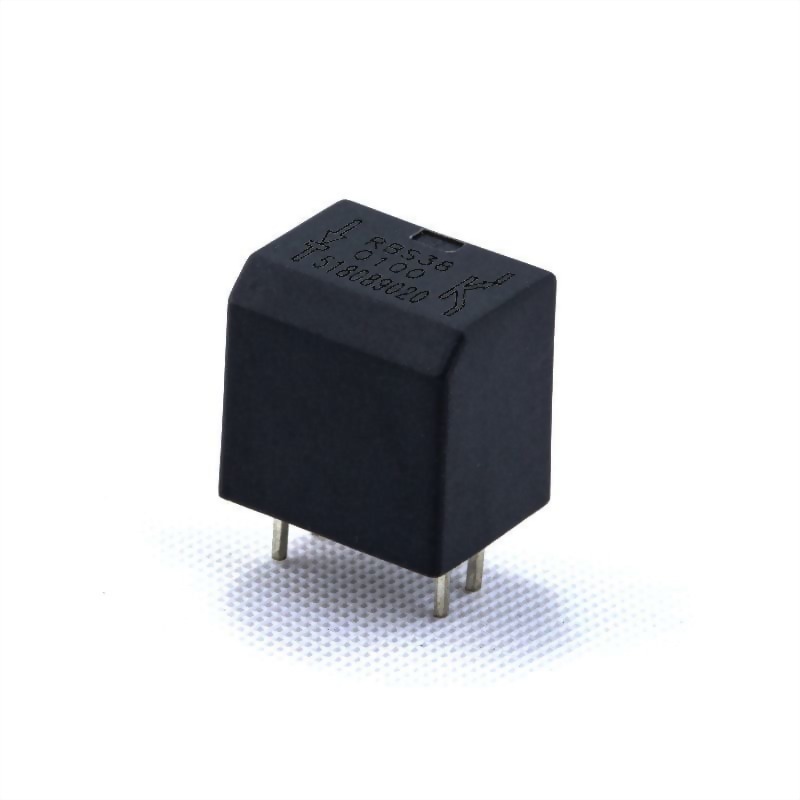

  • RBS380100 Optical Tip-Over Switch 45° for Vertical PCB

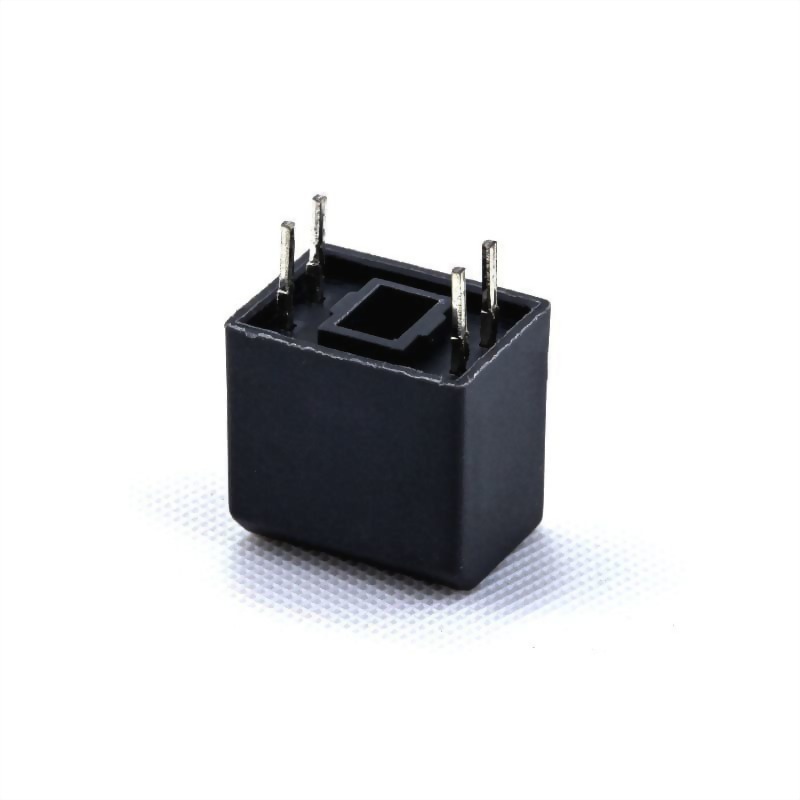

  • RBS380101 Optical Tip-Over Switch 30° for Vertical PCB

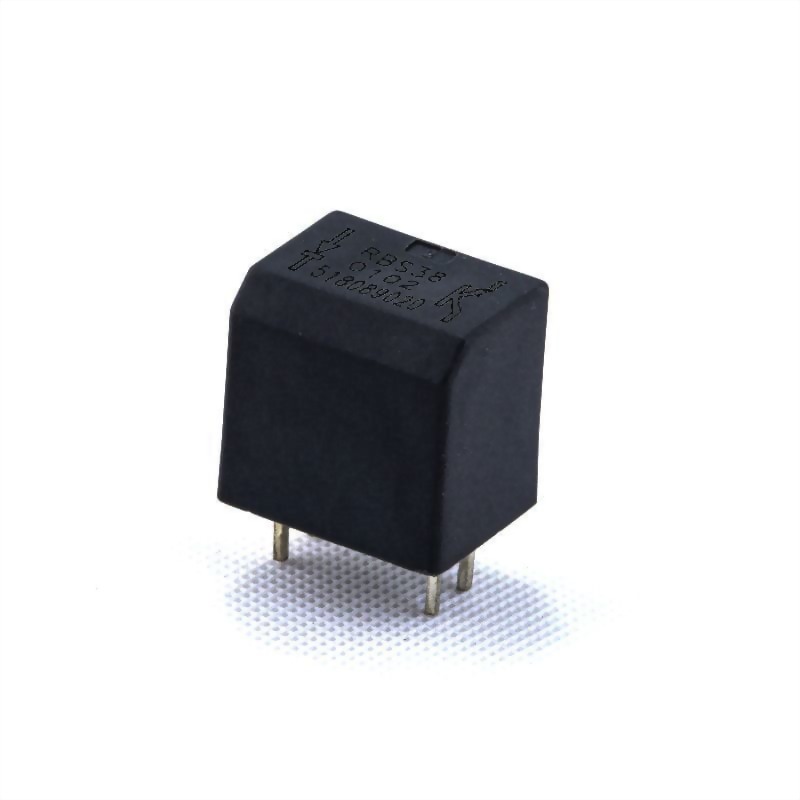

  • RBS380102 Optical Tip-Over Switch 20° for Vertical PCB

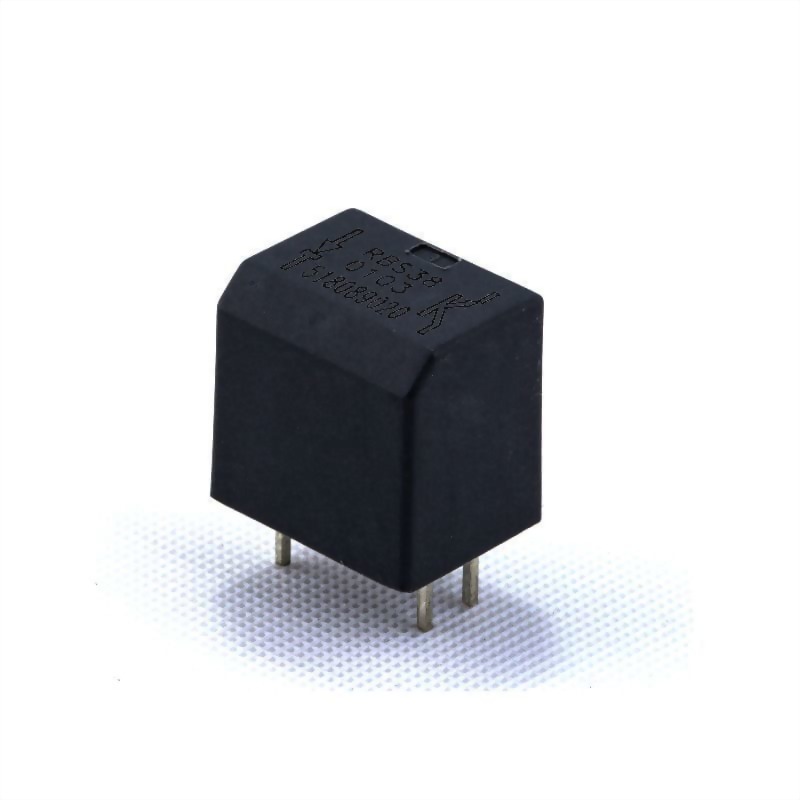

  • RBS38013 Optical Tip-Over Switch 15° for Vertical PCB
● Description: Photoelectric
● Function: Tilt within a 360° radius detecting / Vibration detecting
● Tilt Angle: 15°, ​20°, ​30°, 45°
● Vertical PCB Mount
● Certification: RoHS,REACH,Patent
● Original: Taiwan

Please select which you want to ask the following product specifications:

*Model:







Model RBS380100
RBS380101
RBS380102
RBS380103
Angle 45°
30°
20°
15°
Type
DIP
DIP
DIP
DIP
Dimension (mm)
8*10.5*10
8*10.5*10
8*10.5*10
8*10.5*10
PCB direction
Vertical
Vertical
Vertical
Vertical


Reliable Test Items

  • Operating Temperature: -25°C ~ 85°C
  • Storage Temperature: -40°C ~ 85°C
  • Humidity: 40°C / 95%RH
  • Mechanical Life: 2HZ,horizontal  1,000,000 times
  • Electrical Life: IF=20 mA,  VCE=5V  TIME: 30,000 hrs


Current / Voltage Suggested

Input Current (mA) Operating Voltage (V) Condition
10
3.3 VCE=3.3V  RD=200 ohm  RL=75K ohm
10 5 VCE=5V  RD=390 ohm   RL=100K ohm


  • Function: within a 360° radius tilt detecting / Slight Vibration Detecting
  • Housing made of high insulation plastic material, free from electric conduction and rust problem
  • Detecting with photo transistors, generating highly reliable and stable signals.
  • Conductive rate is higher, nearly 100%.
  • All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
  • Simple ON and OFF signals, easy for design.
  • RoHS compliance, an ideal substitute for mercury switch.
  • A more economical tilt and rotation detection option than IC design solution.
  • All made in Taiwan and Examined before shipment.
  • Do not try to clean the switch with a solvent or similar substance after the soldering process.
  • For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard condition

As for the Roll Ball Switches, a tiny ball in the switch rolls when motion is detected, an alteration of a light path. This will generate the conductive or non-conductive status.They provide accurate control for a wide variety of applications like any angle change detecting or vibration detecting and so on.


Case of RBS38 series



Heater

Function: Automatic Power-Off
Model: RBS380100 / RBS380101



Sweeping Robots

Function: Automatic Power-Off
Model: RBS380100 / RBS380101



Air Purifier Machine

Function: Automatic Power-Off
Model: RBS380100 / RBS380101

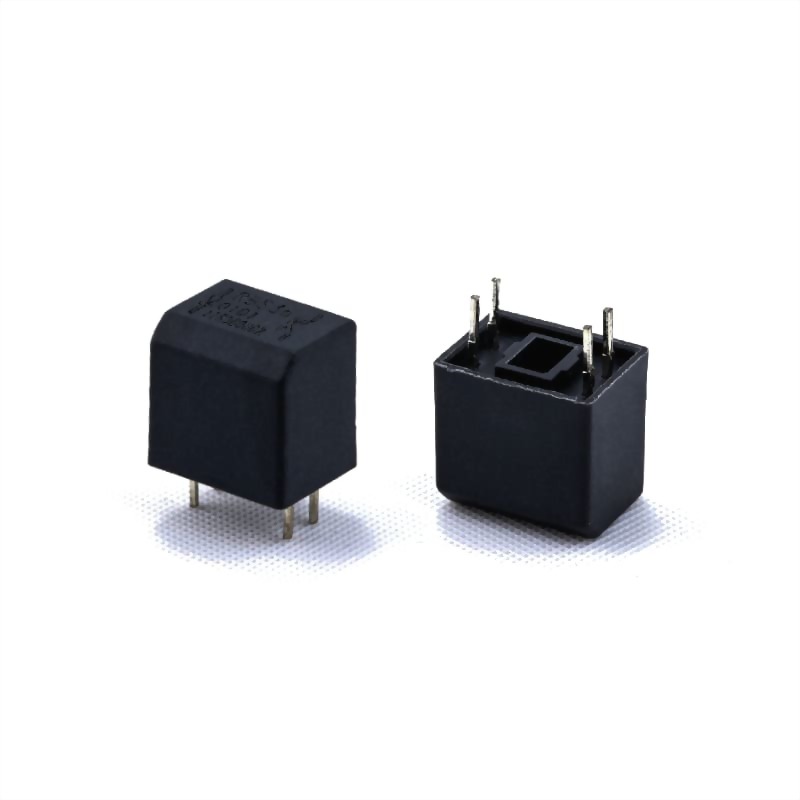

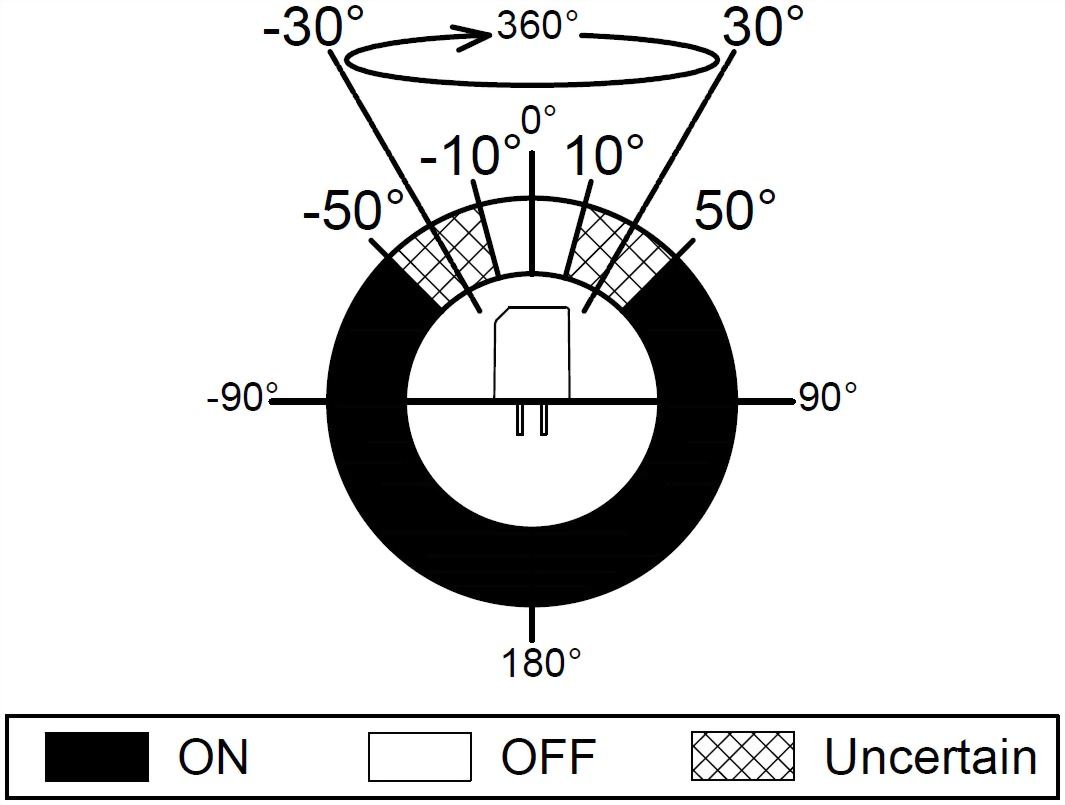

OncQue RBS360101 Photoelectric Tilt Switch for Horizontal PCB



  • Operating Angle: 30° (within a 360° radius)
  • Production Process: DIP
  • Horizontal Mount PCB
  • Dimension: 8*10.5*10 mm
  • Angles option: 15° / 20° / 30° / 6

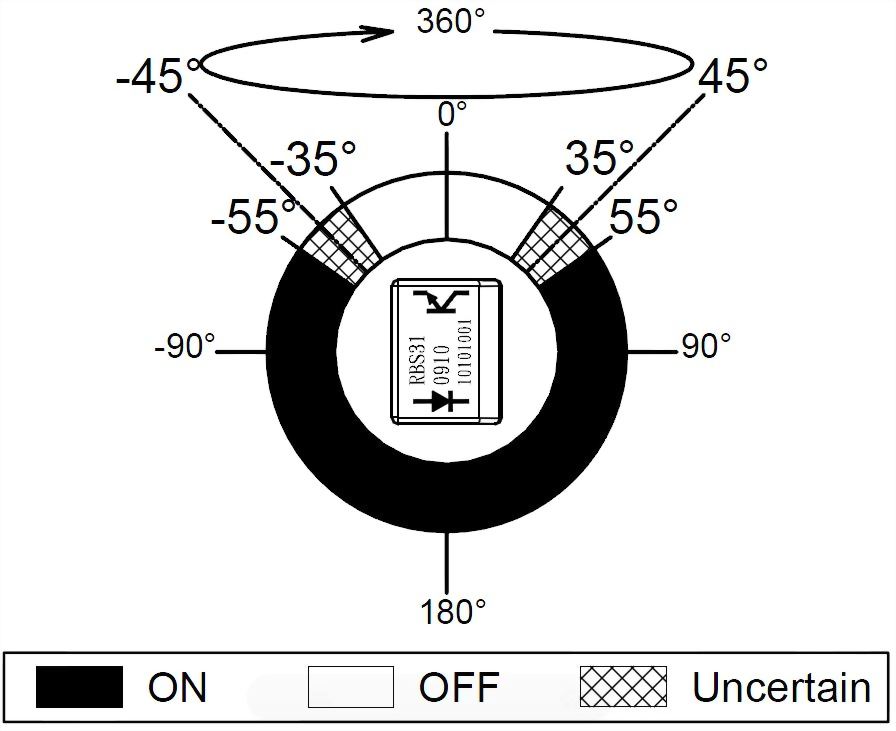

OncQue RBS310910T Photoelectric Tilt Switch for SMT Vertical PCB
