Photoelectric Omni-directional Vibration Sensor Switch
● Description: Photoelectric
● Function: Omni directional Vibration detecting
● Model: VBS040100 / VBS040200T
● Certification: RoHS,REACH,Patent
● Original Place: Taiwan
● 100% Inspection with High Quality
● Function: Omni directional Vibration detecting
● Model: VBS040100 / VBS040200T
● Certification: RoHS,REACH,Patent
● Original Place: Taiwan
● 100% Inspection with High Quality
Please select which you want to ask the following product specifications：
| *Model: |
|
|
 |
 |
| Model |

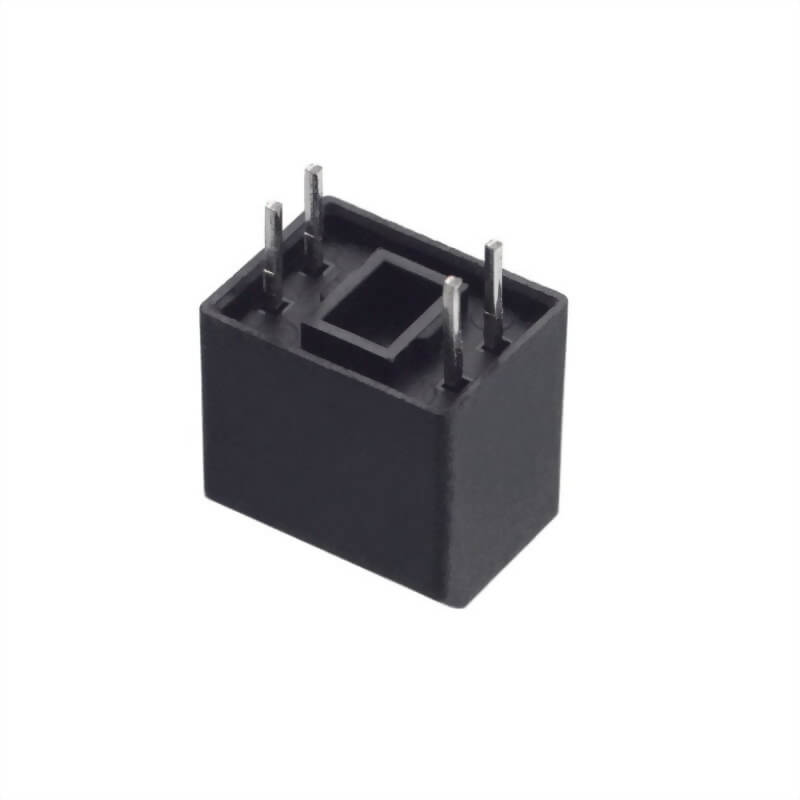

VBS040100 |

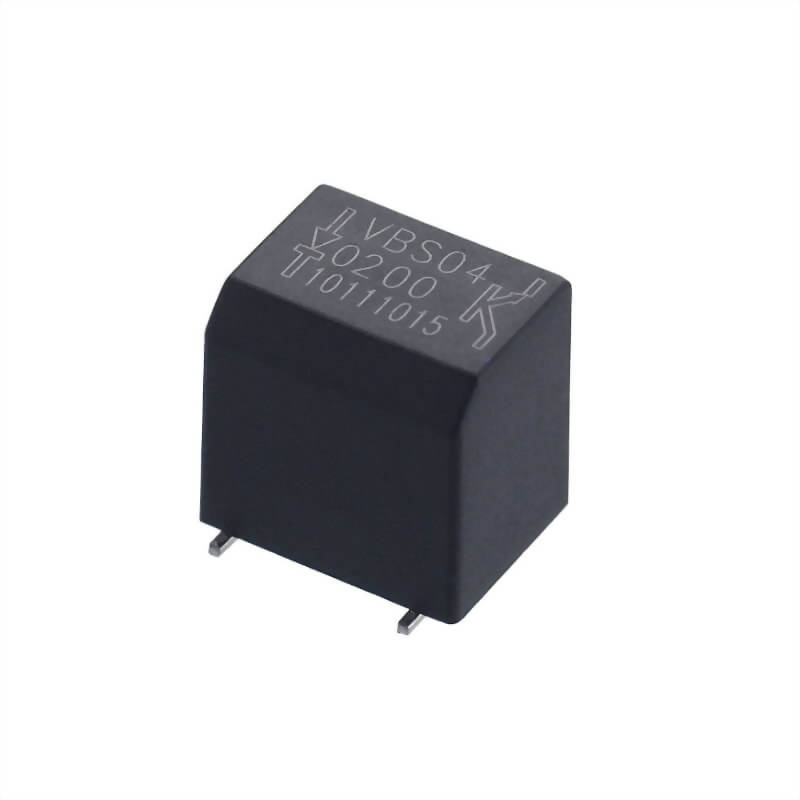

VBS040200T |
| Type |
DIP |
SMD |
|
Dimension (mm) |
8*10.5*10 |
8*10.5*10 |
|
PCB direction |
Horizontal / Vertical PCB | Horizontal / Vertical PCB |
|
IR Reflow |
-- |
peak temp.=255°C~260°C |
Reliable Test Items
- Operating Temperature: -25°C ~ 85°C
- Storage Temperature: -40°C ~ 85°C
- Humidity: 40°C / 95%RH
- Mechanical Life: 2HZ,horizontal 1,000,000 times
- Electrical Life: IF=20 mA, VCE=5 V TIME: 30,000 hrs
Current / Voltage Suggested
|
Input Current (mA) |
Operating Voltage (V) |
Condition |
|
10 |
3.3 |
Please refer to datasheet Application Circuit for designing electrical circuit. |
| 10 | 5 |
Please refer to datasheet Application Circuit for designing electrical circuit. |
- Function: Omni-directional Vibration detecting
-
Housing made of high insulation plastic material, free from electric conduction and rust problem.
- Detecting with photo transistors, generating highly reliable and stable signals.
- All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
- Simple ON and OFF signals, easy for design.
- RoHS compliance, an ideal substitute for mercury switch.
- A more economical vibration detection option than IC design solution.
- All made in Taiwan and examined before shipment.
- Do not try to clean the switch with a solvent or similar substance after the soldering process.
- For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.
