Vibration Shock Sensor Switch

  • RBS02 Vibration Shock Sensor Switch
  • RBS021002 Vibration Shock Sensor
  • RBS021202 Vibration Shock Sensor
  • RBS020602 Vibration Shock Switch
  • RBS020802 Vibration Shock Switch
  • RBS020902 Vibration Shock Sensor
  • RBS021102 Vibration Shock Switch
  • RBS02 Vibration Shock Sensor
  • RBS02 Shock Sensor

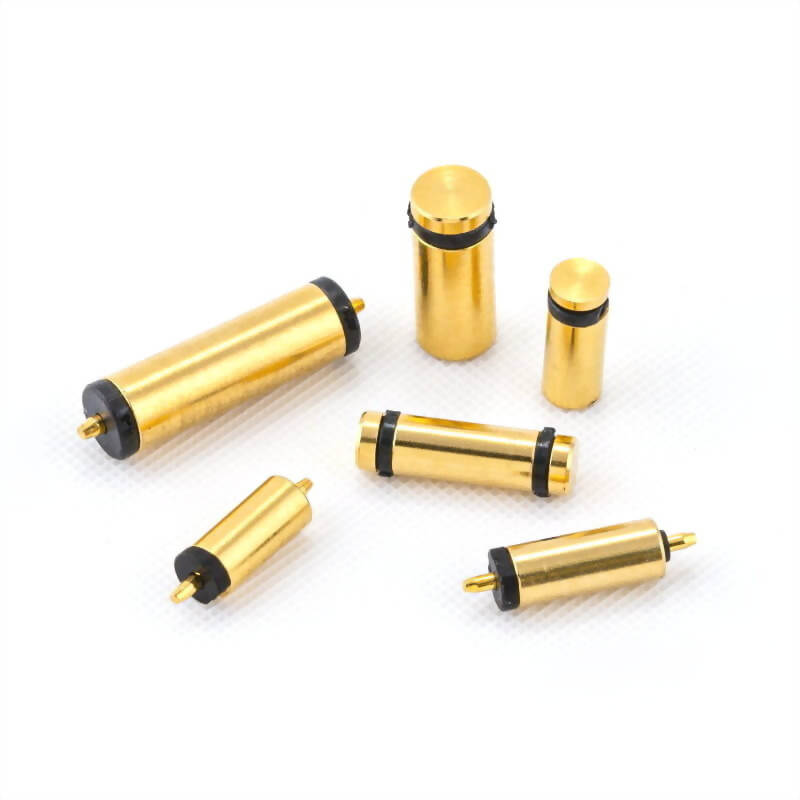

● Description: Ball-Contact
● Function: Vibration & Shock detecting
● Model: RBS020602 / RBS020802 / RBS020902 / RBS021002 / RBS021102 / RBS021202
● Certification: RoHS, REACH, Patent
● Original Place: Taiwan
● 100% Inspection with High Quality

Please select which you want to ask the following product specifications:

*Model:



RBS020602 Vibration Shock Switch
RBS020802 Vibration Shock Switch
RBS020902 Vibration Shock Sensor
RBS021002 Vibration Shock Sensor
RBS021102 Vibration Shock Switch
RBS021202 Vibration Shock Sensor
Model RBS020602
RBS020802
RBS020902
RBS021002 RBS021102
RBS021202

Operating Angle

θ <20°
θ <20°
θ <2
-- θ <10°
--
Switch state
SMD Normal Open
SMD Normal Open
SMD Normal Open
SMD
SMD Normal Open
SMD
Dimension(mm)
Φ4*13.6
Φ3*6.8
Φ3*7.8
Φ3*8.4
Φ4*9.6
Φ3*10.4
PCB direction
Horizontal PCB
Horizontal PCB
Horizontal PCB
Horizontal PCB
Horizontal PCB
Horizontal PCB
IR Reflow Manual Soldering Suggest Manual Soldering Suggest Peak temp.=255~260°C Manual Soldering Suggest Peak temp.=255~260°C
Manual Soldering Suggest


Electrical Characteristics

  • Contact Resistance(RBS020602、RBS020802、RBS020902、RBS021102): 10 Ω max.
  • Contacting Rate: 10 mA, 5 VDC
  • Insulation Resistance: 50 MΩ min. at 100 VDC
  • Dielectric Strength: 50 VDC min. for 1 minute
  • Capacitance: 5pF max.


Reliable Test Items

  • Operating Temperature: 25°C ~ 85°C
  • Storage Temperature: -40°C ~ 85°C
  • Humidity: 40°C / 95%RH
  • Mechanical Life: 2 HZ,horizontal  1,000,000 times
  • Electrical Life: 100,000 times


Current / Voltage Suggested

Input Current (mA)
Operating Voltage (V)
Condition
1.0
5
--

  • Function: Vibration detecting, Shock detecting
  • The RBS021002 and RBS021202 acts like a normally closed switch which chatters open and closed as it is tilted or vibrated. Note that the RBS021002 and RBS021202 is not guaranteed to be closed occasionally the sensing mechanism may remain open when at rest. The engineer should design his or her software to look for high to low and low to high edge transitions rather than an open or closed state of the switch.
  • Tiny size, suitable for small space
  • Wing shaped terminals, a feature enables half body of the sensor switch to be buried in to PCB.
  • Gold plated ball and terminals low possibility of oxidization.
  • All plastic material s subject to industrial purpose , resist high temperature and meet fire proof function.
  • Simple ON and OFF signals, easy for design.
  • RoHS compliance, an ideal substitut e for mercury switch.
  • A more economical tilt and rotation detection option than IC design solution.
  • All made in Taiwan and examined before shipment.
  • Do not try to clean the switch with a solvent or similar substance after the soldering process.
  • Suggestion for usage: For vibration usage or application, we suggest to add hysteresis for IC; if vibration is heavy, optical type of sensor switch is recommended.
  • For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.
