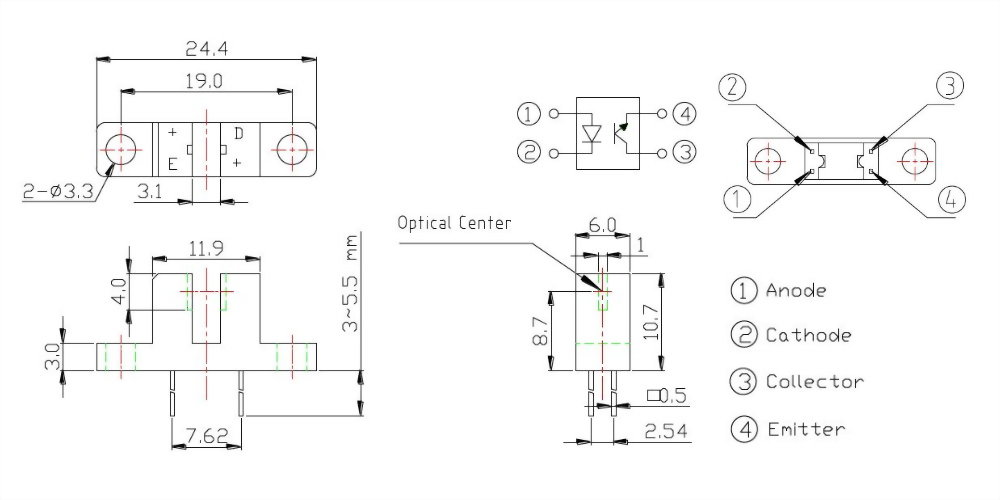

3.1mm IR Opto Isolated Slot Sensor

  • 3.1mm IR Opto Isolated Slot Sensor
DPI050100
Position detecting / Paper detecting / Signal detecting
Certification: RoHS
Original Place: Taiwan

Please select which you want to ask the following product specifications:

*Model:


Absolute Maximum Rating(Ta=25°C)

Item
Symbol
Rating
Unit
Input  Power Dissipation
Pd 75 mW
Reverse Voltage VR
5 V
Forward Current
IF 30 mA

Peak Forward Current (*1)

Pulse width≦100μs, Duty≦1%.

IFP  0.1 A
Output Collector Power Dissipation
PC 75 mW
Collector Current
IC
20 mA
C-E Voltage
VCEO
30 V
E-C Voltage
VECO
5 V
Operating Temperature
Topr
-40~+85 °C
Storage Temperature
Tstg
-40~+100 °C
Soldering Temperature (*2)
Tsol
260 °C

Notes:

(*1) tw=100μsec , T=10msec    (*2) t≦5 Sec


Electrical Optical Characteristics  (Ta=25°C)

Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Forward Voltage VF IF=20mA  - 1.2 1.5 V
Reverse Current IR
VR=5V  - - 10 μA
Peak Wavelength λp  IF=20mA  940
nm
Dark Current
Iceo VCE=20V  - - 100 nA
C-E Saturation Voltage
VCE (sat)

IC=0.5mA

IF=20mA

- - 0.4
Light Current
IC

VCE=5V

 IF=10mA

0.5 - - mA


Current / Voltage Suggested

Input Current (mA)
Operating Voltage (V)
Condition
1.0
5
VCE=5V   RD=390 ohm   RL=33K ohm


FUNCTIONS

  • Position detecting
  • Paper detecting
  • Signal detecting


FEATURES

  • Simple structure, multi-stalling angles for option.
  • Housing made of high anti-tension industrial plastic, free from crack caused during installation.
  • Infrared LED emitting diode matches with phototransistor, free from interference of vision light.
  • Comply with RoHS.
  • Made in Taiwan.
  • Do not try to clean the switch with a solvent or similar substance after the soldering process.
  • Use water-soluble flux may damage the switch.
  • For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.


  • Automatic control system
  • Automation Equipment
  • Scanner
  • Printer
  • Fax machine
  • Copy machine
  • Printing machine
  • PC mouse
  • Security system
  • Counter
  • Optical encoders
  • Other relevant detection about position detecting, paper detecting, signal detecting
