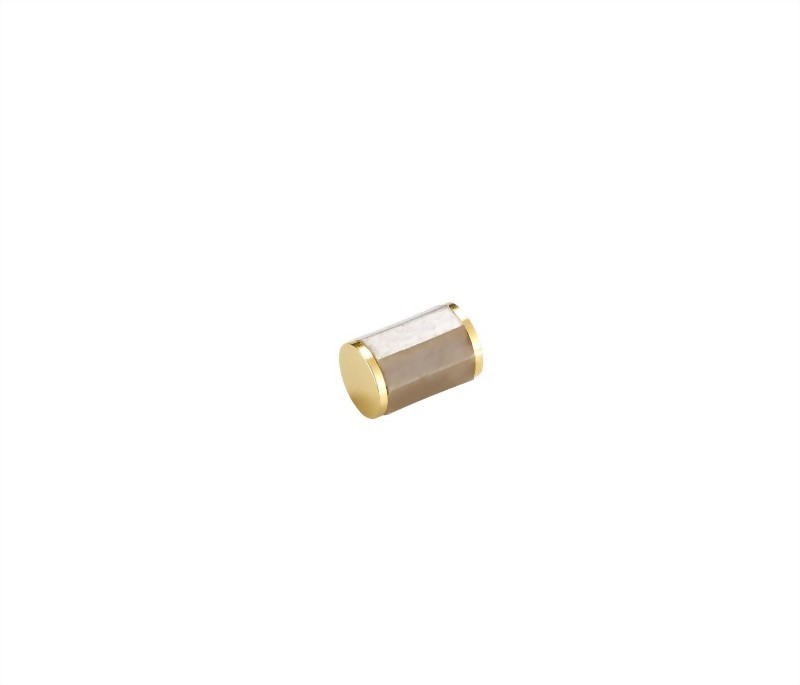

Omnidirectional 45° Tilt Switch - Vertical PCB installed
Please select which you want to ask the following product
specifications:
● Description: Omnidirectional 45° Tilt Switch
● Mercury Switch Alternative
● Function: 45° Tilt detecting within a 360° radius
● Extremely small
● Model: RBS240100T, RBS240200T
● Tilt Angle: 45°
● Vertical PCB Mount
● Certification: RoHS,REACH,Patent
● Original: Taiwan
※ Please refer to the specifications for the manufacturing process and other precautions
● Mercury Switch Alternative
● Function: 45° Tilt detecting within a 360° radius
● Extremely small
● Model: RBS240100T, RBS240200T
● Tilt Angle: 45°
● Vertical PCB Mount
● Certification: RoHS,REACH,Patent
● Original: Taiwan
※ Please refer to the specifications for the manufacturing process and other precautions
|
|
 |
|
|
Model |
RBS240100T |
RBS240200T |
|
Operating Angle |
45° |
45° |
| Type | SMD NO |
SMD NO |
|
Dimension (mm) |
Φ3.2*4.8 |
Φ3.2*4.8 |
|
PCB direction |
Vertical |
Vertical |
Reliable Test Items
- Operating Temperature: -25°C ~ 85°C
- Storage Temperature: -40°C ~ 85°C
- Humidity: 40°C / 95%RH
- Mechanical Life: 2 HZ,horizontal 1,000,000 times
- Electrical Life:100,000 times
Current / Voltage Suggested
| Model | Input Current (mA) | Operating Voltage (V) |
Condition |
|
RBS240100T
|
1.0 |
3 | -- |
- Function: 45° Tilt detecting within a 360° radius
- All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
- Simple ON and OFF signals, easy for design.
- RoHS compliance, an ideal substitute for mercury switch.
- A more economical tilt and rotation detection option than IC design solution.
-
All made in Taiwan and Examined before shipment.
- For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.
