Tiny size Vibration Sensor Switch

  • Tiny size Vibration Sensor Switch

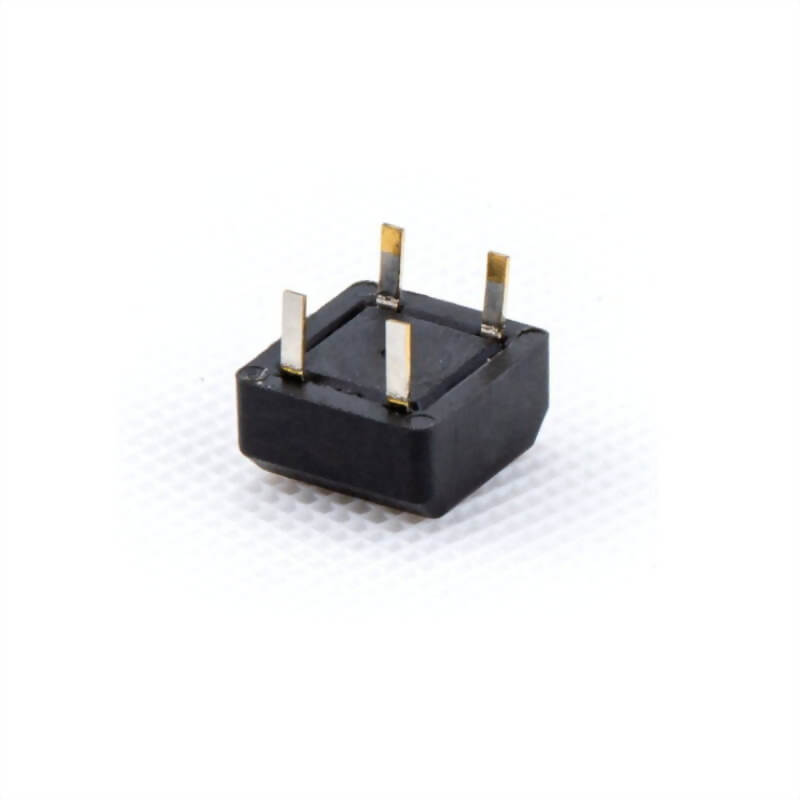

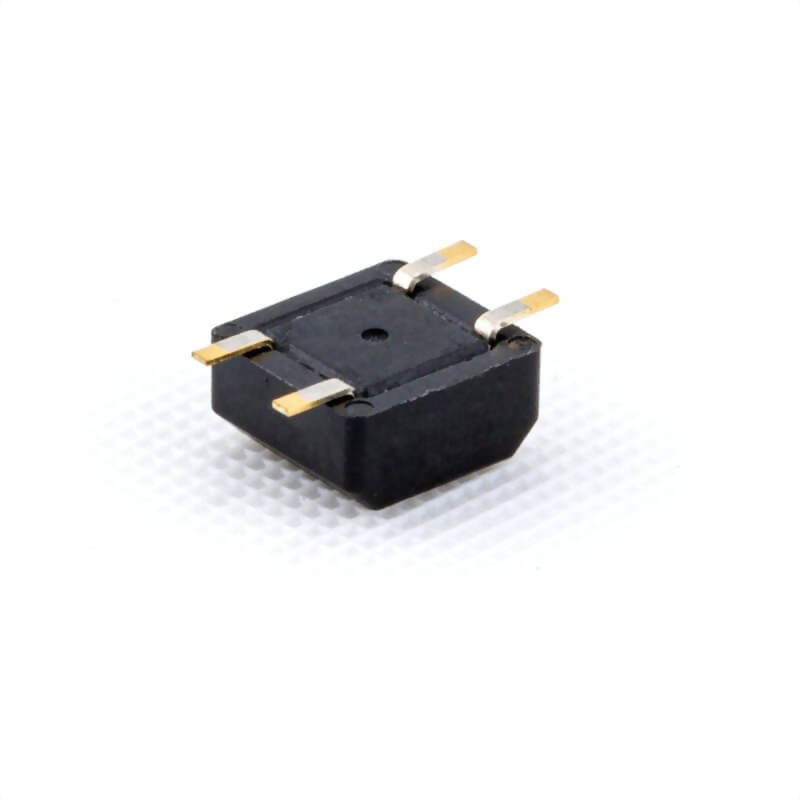

RBS100602 / RBS100612T
Description:Ball-Contact
Function: Vibration detection in horizontal position.
Certification: RoHS,REACH,Patent
Trade Term: EX-WORK
Original Place:Taiwan

Please select which you want to ask the following product specifications:

*Model:





Model RBS100602
RBS100612T
Type DIP
SMD
Dimension (mm)
5*4.7*2.45
5*4.7*2.45
PCB direction
Horizontal Horizontal
IR Reflow
--
Peak temp.=255~260°C


Electrical Characteristics
  • Contacting Rate: 10mA , 5VDC
  • Insulation Resistance: 50MΩ min. at 100VDC
  • Dielectric Strength: 50VDC min. for 1 minute
  • Capacitance: 5pF max.


Reliable Test Items

  • Operating Temperature: -25°C ~ 85°C
  • Storage Temperature: -40°C ~ 85°C
  • Humidity: 40°C / 95%RH
  • Mechanical Life: 2HZ,horizontal  1,000,000 times
  • Electrical Life: 100,000 times


Current / Voltage Suggested

Input Current (mA)
Operating Voltage (V)
Condition
1.0 5~12 --
  • Function: Vibration detection in horizontal position.
  • RBS100612 T acts like a normally open switch which chatters closed and ope n as it is tilted or vibrated. Note that the RBS1006 1 2 T is not guaranteed to be open occasionally the sensing mechanism may remain close when at rest. The engineer should design his or her software to look for high to low and low to high edge transitions rather than an open or closed state of the switch.
  • Small size & compact space.
  • H ousing made of high insulation plastic material, free from electric conduction and rust problem.
  • Terminals and balls are gold plated to enhance the life.
  • All plastic material subject to industrial purpose meets high temperature and fireproof function.
  • Simple switch signal, easy for circuit design.
  • Comply with RoHS , c omplete replacement of mercury switch and meet environmental protection.
  • More economic than IC design.
  • All made in Taiwan and examine d before shipment.
  • Do not try to clean the switch with a solvent or similar substance after the soldering process.
  • Suggestion for usage: For vibration usage or application, we suggest to add hysteresis for IC; if vibration is heavy, optical type of sensor switch is recommended.
  • For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.
