Omni directional Vibration Switch

  • Omni directional Vibration Switch
Omni directional Vibration Switch
VBS061100 / VBS062100T
Description:Ball-Contact
Function: Omni directional Vibration Detecting
Certification: RoHS,REACH,Patent
Trade Term: EX-WORK
Original Place:Taiwan

Please select which you want to ask the following product specifications:

*Model:





Model

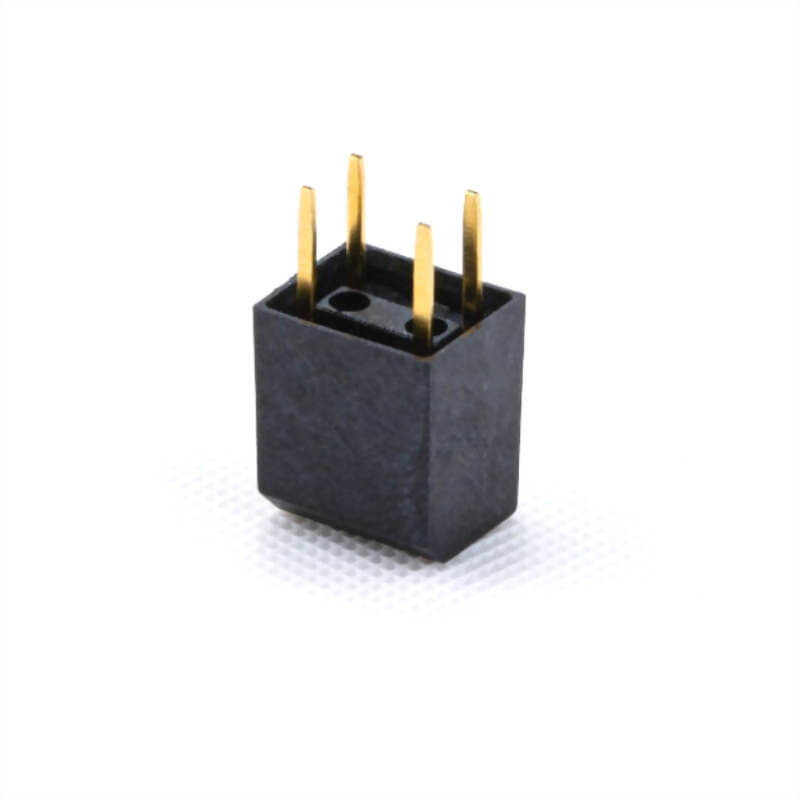

VBS061100

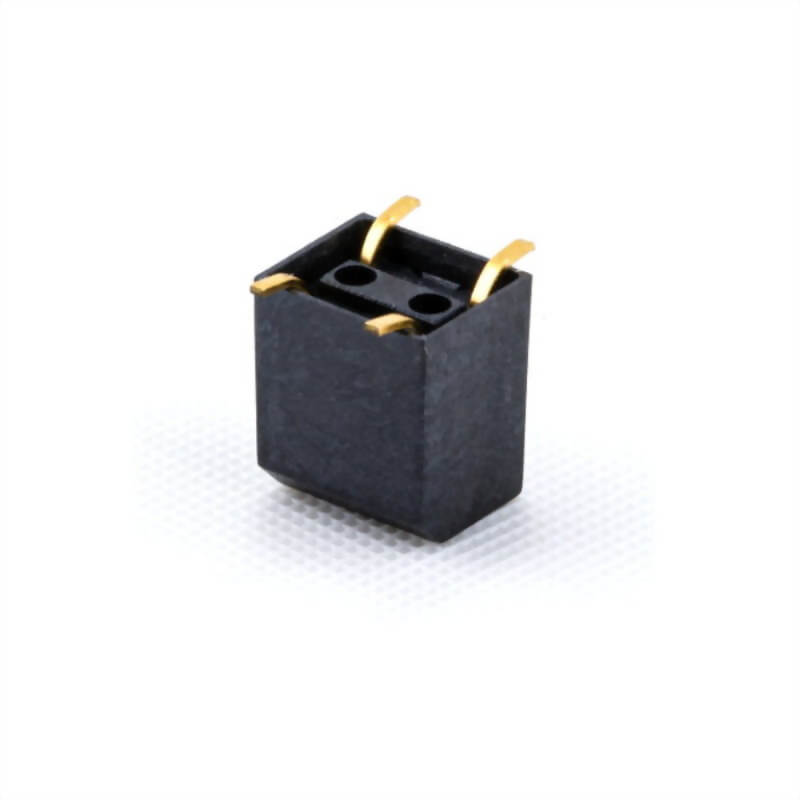

VBS062100T
Type
DIP
SMD
Dimension(mm)
6*5*7
6*5*7
PCB direction
Horizontal / Vertical PCB
Horizontal / Vertical PCB
IR Reflow
--
peak temp.=255°C~260°C


Electrical Characteristics

  • Contacting Rate: 10 mA, 5 VDC
  • Insulation Resistance: 10 MΩ min. at 100 VDC
  • Dielectric Strength500 VDC min. for 1 minute
  • Capacitance: 5 pF max.


Reliable Test Items

  • Operating Temperature:  -25°C ~ 85°C
  • Storage Temperature: -40°C ~ 85°C
  • Humidity: 40°C / 95%RH
  • Mechanical Life: 2HZ,horizontal  1,000,000 times
  • Electrical Life: 100,000 times


Current / Voltage Suggested

Input Current (mA)
Operating Voltage (V)
Condition
1.0 5 --

  • Function: Omni-directional Vibration Detecting
  • The VBS06 acts like a normally closed switch which chatters open and closed as it is tilted or vibrated. Note that the VBS06 is not guaranteed to be closed --- occasionally the sensing mechanism may remain open when at rest. The engineer should design his or her software to look for high-to-low and low-to-high edge transitions rather than an open or closed state of the switch.
  • Housing made of high insulation plastic material, free from electric conduction and rust problem.
  • Gold-plated ball and terminals, low possibility of oxidization.
  • All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
  • Simple ON and OFF signals, easy for design.
  • RoHS compliance, an ideal substitute for mercury switch.
  • A more economical vibration detection option than IC design solution.
  • All made in Taiwan and examined before shipment.
  • Do not try to clean the switch with a solvent or similar substance after the soldering process.
  • Suggestion for usage: For vibration usage or application, we suggest to add hysteresis for IC; if vibration is heavy, optical type of sensor switch is recommended.
  • For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.
