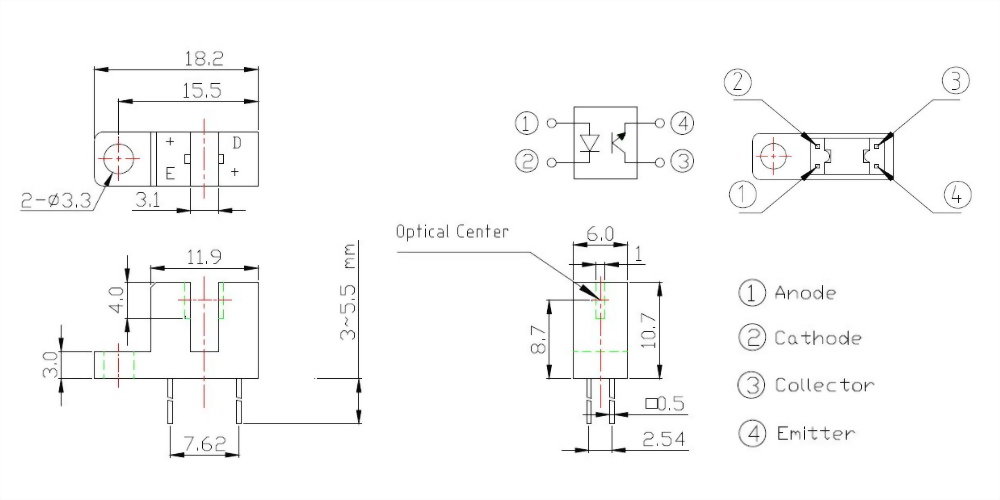

3.1mm Transmissive Opto Interrupter
●Position detecting / Paper detecting / Signal detecting
●Certification: RoHS
●Original Place: Taiwan
※ Please refer to the specifications for the manufacturing process and other precautions
Absolute Maximum Rating（Ta=25°C）
|
Item |
Symbol |
Rating |
Unit |
|
| Input |
Power Dissipation |
Pd | 75 | mW |
| Reverse Voltage |
VR |
5 | V | |
|
Forward Current |
IF | 30 | mA | |
|
Peak Forward Current(*1) Pulse width≦100μs, Duty≦1%. |
IFP | 0.1 | A | |
| Output |
Collector Power Dissipation |
PC | 75 | mW |
|
Collector Current |
IC |
20 | mA | |
|
C-E Voltage |
VCEO |
30 | V | |
|
E-C Voltage |
VECO |
5 | V | |
|
Operating Temperature |
Topr |
-40~+85 |
°C |
|
|
Storage Temperature |
Tstg |
-40~+100 |
°C |
|
|
Soldering Temperature (*2) |
Tsol |
260 |
°C |
|
Notes:
(*1) tw=100μsec, T=10 msec (*2) t≦5 Sec
Electrical Optical Characteristics (Ta=25°C)
|
Parameter |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
| Forward Voltage | VF | IF=20mA | - | 1.2 | 1.5 | V |
| Reverse Current |
IR |
VR=5V | - | - | 10 |
μA |
| Peak Wavelength | λp | IF=20mA | 940 |
|
nm |
|
|
Dark Current |
Iceo | VCE=20V | - | - | 100 |
nA |
|
C-E Saturation Voltage |
VCE (sat) |
IC=0.5mA IF=20mA |
- | - | 0.4 |
V |
|
Light Current |
IC |
VCE=5V IF=10mA |
0.5 | - | - |
mA |
Current / Voltage Suggested
Input Current
Operating Voltage
Condition
10 mA
5V
VCE=5V RD=390 ohm RL=33K ohm
FUNCTIONS
- Position detecting
- Paper detecting
- Signal detecting
FEATURES
- Simple structure, multi-stalling angles for option.
- Housing made of high anti-tension industrial plastic, free from crack caused during installation.
- Infrared LED emitting diode matches with phototransistor, free from interference of vision light.
- Comply with RoHS.
- Made in Taiwan.
-
Do not try to clean the switch with a solvent or similar substance after the soldering process.
-
Use water-soluble flux may damage the switch.
-
For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.
- Automatic control system
- Automation Equipment
- Scanner
- Printer
- Fax machine
- Copy machine
- Printing machine
- PC mouse
- Security system
- Counter
- Optical encoders
- Other relevant detection about position detecting, paper detecting, signal detecting
