Ball Rolling Vibration Switch

  • RBS13 Ball Rolling Vibration Switch

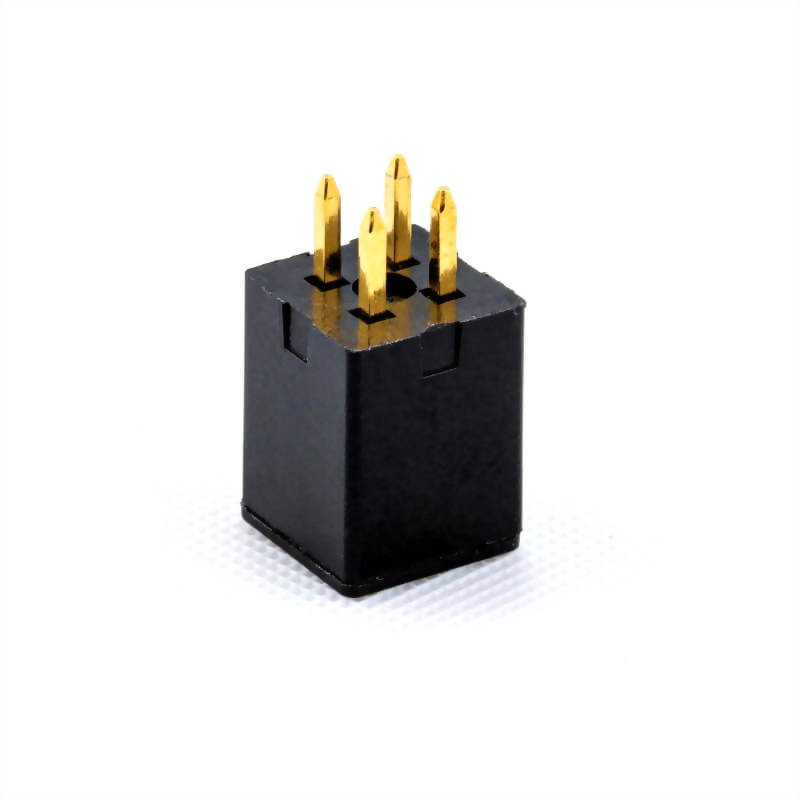

  • RBS130100 Roll Ball Vibration Switch

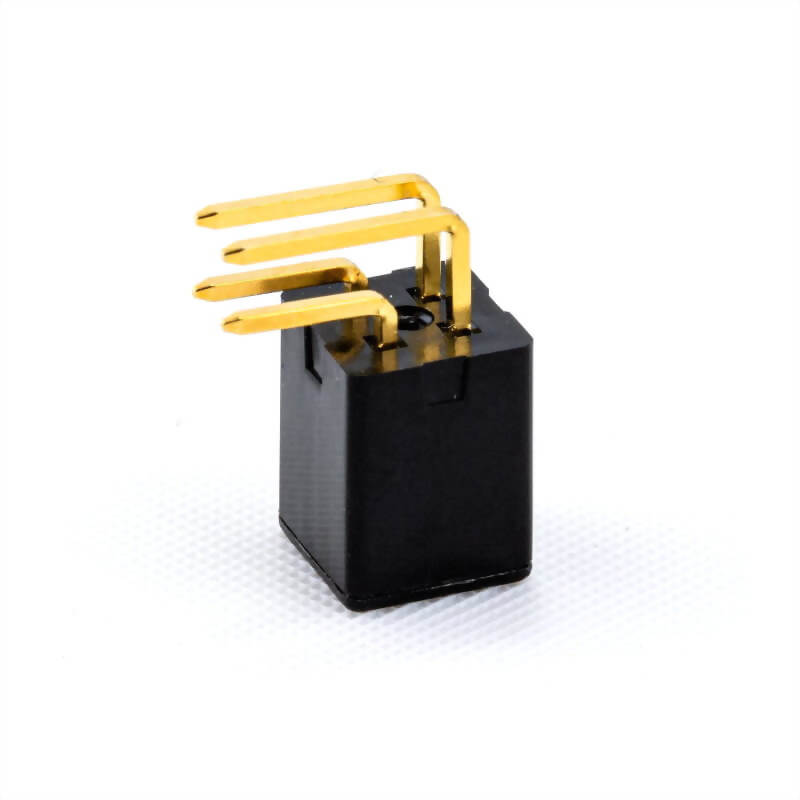

  • RBS130200 Roll Ball Vibration Switch
● Description:Ball-Contact
● Function: Vibration detecting
● Model: RBS130100 / RBS130200
● Certification: RoHS,REACH,Patent
● Original Place: Taiwan
● 100% Inspection with High Quality

Please select which you want to ask the following product specifications:

*Model:



RBS130100 Roll Ball Vibration Switch
RBS130200 Roll Ball Vibration Switch
Model RBS130100
RBS130200
Type DIP
DIP
Dimension (mm)
6.5*6.5*8.5
6.5*6.5*8.5
PCB direction
Horizontal PCB Vertical PCB


Electrical Characteristic
  • Contacting Rate: 10 mA , 5 VDC
  • Insulation Resistance: 1000 MΩ min. at 100 VDC
  • Dielectric Strength500 VDC min. for 1 minute
  • Capacitance: 5 pF max.


Reliable Test Items

  • Operating Temperature:-25°C ~ 85°C
  • Storage Temperature: -40°C ~ 85°C
  • Humidity: 40°C / 95%RH
  • Mechanical Life: 2HZ,horizontal  1,000,000 times
  • Electrical Life: 100,000 times


Current / Voltage Suggested

Input Current (mA)
Operating Voltage (V)
Condition
1.0 5 --


  • Function: Vibration detecting
  • RBS13 acts like a normally close switch which chatters open and close as it is tilted or vibrated. Note that the RBS130200 is not guaranteed to be close occasionally the sensing mechanism may remain close when at rest. The engineer should design his or her software to look for high to low and low to
    high edge transitions rather than an open or closed state of the switch.
  • Gold pl ated ball and terminals low possibility of oxidization.
  • Housing made of high insulation plastic material, free from electric conduction and rust problem.
  • All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
  • Simple ON and OFF signals, easy for design.
  • RoHS compliance, an ideal substitut e for mercury switch.
  • A more economical tilt and rotation detection option than IC design solution
  • All made in Taiwan and examined before shipment
  • Do not try to clean the switch with a solvent or similar substance after the soldering process.
  • Suggestion for usage: For vibration usage or application, we suggest to add hysteresis for IC; if vibration is heavy, optical type of sensor switch is recommended.
  • For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.
