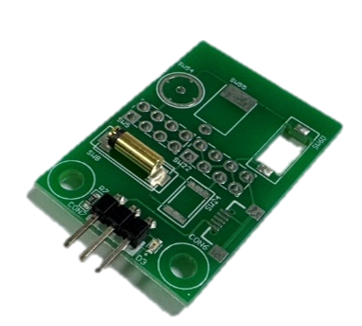

Roll Ball Tilt Module RBM020902
● Ball Series Tilt Module
● Function: Angle Detection Module
※ Please refer to the specifications for the manufacturing process and other precautions
|
|
 |
|
Model |
RBM020902 |
|
Operating Angle |
θ <20° |
|
Switch State |
DIP |
● Function
Angle signal detection.
● Applications
1. Industrial Automation: Used for robotic arm positioning,
production line control, etc.
2. Home Appliances: Used for safety protection, energy-saving wake-up functions, etc.
3. Machinery Equipment: Used for condition monitoring, safety alerts, etc.
Current / Voltage Suggested
|
Input Current (mA) |
Operating Voltage (V) |
Condition |
|
10 |
5 |
-- |
Note: Since the roll ball sensor switch component operates analogically (whether contact-based or photoelectric), the LED brightness may not be strictly ON/OFF. It only indicates whether the ball switch component has been activated. The actual functionality can be verified through equipment such as oscilloscopes or multimeters to confirm the signal.
● Pin-Define and Appearance: The module is divided into two types: 3-pin and 4-pin, as described below:
1、3-pin as described below:
2、4-pin as described below:
● Features：
1. Fast Verification: Converts the functional characteristics of the ball switch component into voltage signals.
2. Easy to Use: Convenient installation; suitable for various application scenarios.
3. Wide Application: Applicable in industrial automation, home appliances, machinery equipment, and other fields.
