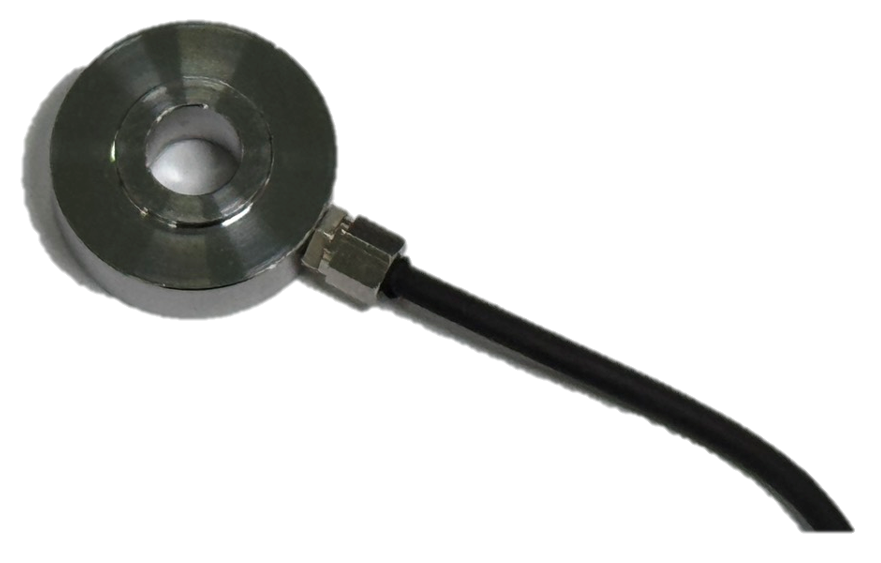

Intelligent Vibration – Locking Force (Load cell) Sensor
Please select which you want to ask the following product
specifications:
Model Number：ARI742
●Locking Force Range： 0.1~100kg (specifications customizable upon request)
●Communication Interface：analog differential signal
●Measurement Functions：Locking Force(kg)
●Locking Force Range： 0.1~100kg (specifications customizable upon request)
●Communication Interface：analog differential signal
●Measurement Functions：Locking Force(kg)
Constructed with special-grade stainless steel for enhanced durability and corrosion resistance.
Offers high dynamic response frequency, ensuring accurate and rapid signal feedback in dynamic environments.
Suitable for a wide range of applications, including:
• Precision machining production lines
• Semiconductor manufacturing equipment
• Monitoring applications for screw tightening processes

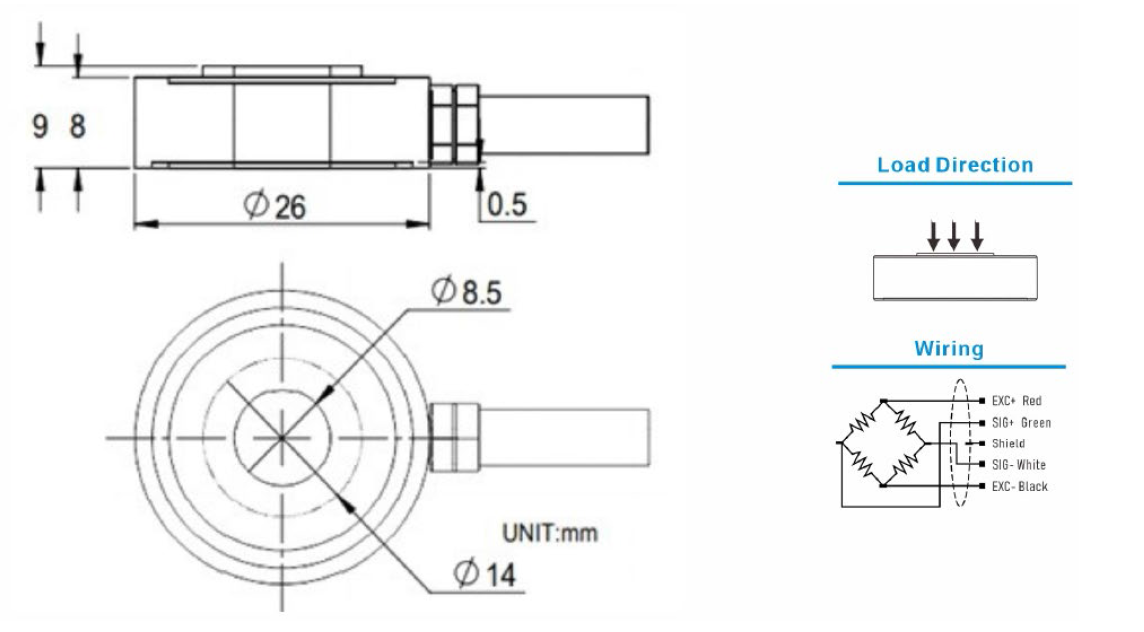

• Mounting Dimension
• Technical Parameters
| Specification | Technique |
| Rated load | 100kg |
| Rated output |
1.0 ±10% mV/V |
| Zero balance |
±1% F.S. |
| Non-linearity |
0.05% F.S. |
| Hysteresis |
0.05% F.S. |
|
Creep error（30 mins.） |
0.03% F.S. |
| Temp. effect on span |
0.03% F.S. / 10°C |
|
Temp. effect on zero |
0.03% F.S. / 10°C |
| Material |
17-4PH Stainless steel |
| Insulation resistance |
≥5000MΩ / 100VDC |
| Excitation voltage |
5～15V |
| Compensated temp. range |
-20～80°C |
| Safe overload |
150% F.S. |
| Ultimate overload |
200% F.S. |
| Cable |
Ø3 × 0.8m |
| Cable color |
EXC+：Red，EXC-：Black，SIG+：Green，SIG-：White |
