Optical Anti Tilt Sensor Switch for Horizontal Mount PCB
Please select which you want to ask the following product
specifications:

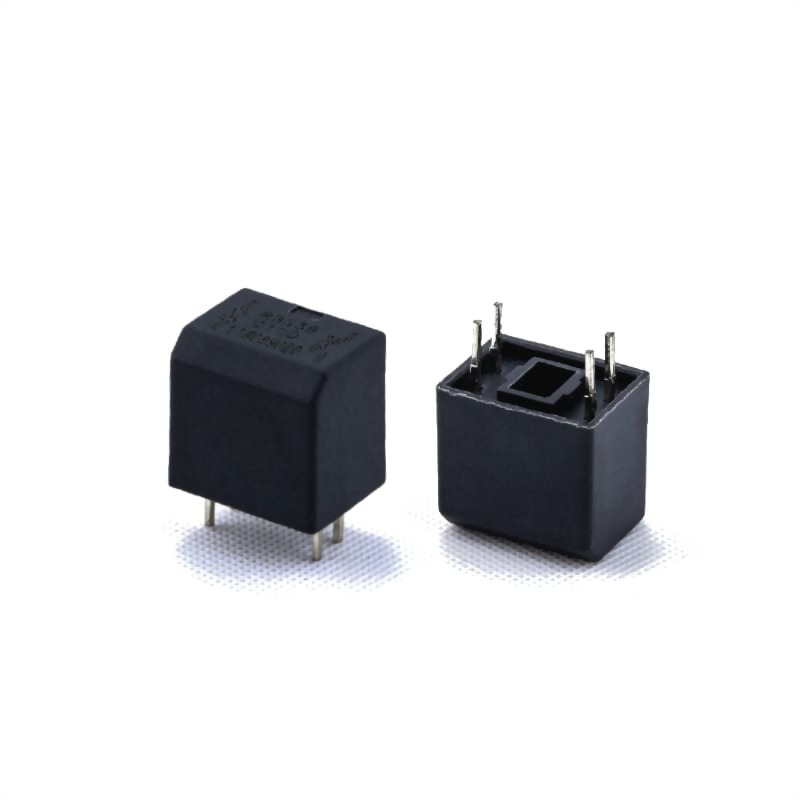

● Description: Photoelectric Tip Over Switch
● Mercury Switch Alternative
● Function: Tilt within a 360° radius detecting / Vibration detecting
● Model: RBS400100 / RBS400101 / RBS401100 / RBS401101
● Tilt Angle: 30°, 45°
● Horizontal PCB Mount
● Certification: RoHS,REACH,Patent
● Original: Taiwan
※ Please refer to the specifications for the manufacturing process and other precautions
● Mercury Switch Alternative
● Function: Tilt within a 360° radius detecting / Vibration detecting
● Model: RBS400100 / RBS400101 / RBS401100 / RBS401101
● Tilt Angle: 30°, 45°
● Horizontal PCB Mount
● Certification: RoHS,REACH,Patent
● Original: Taiwan
※ Please refer to the specifications for the manufacturing process and other precautions
|
Model |
RBS400100 |
RBS400101 |
RBS401100 |
RBS401101 |
|

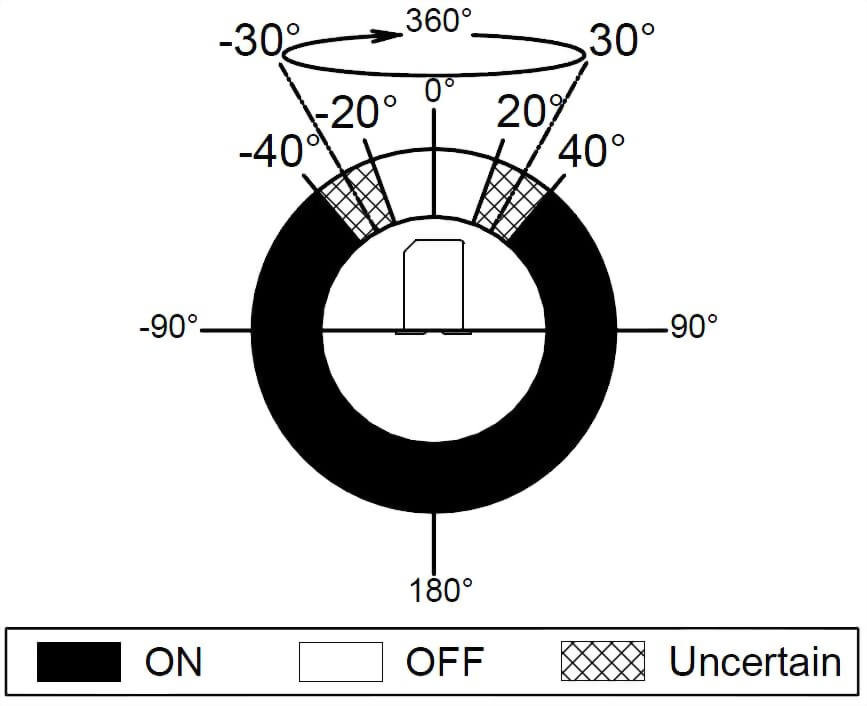

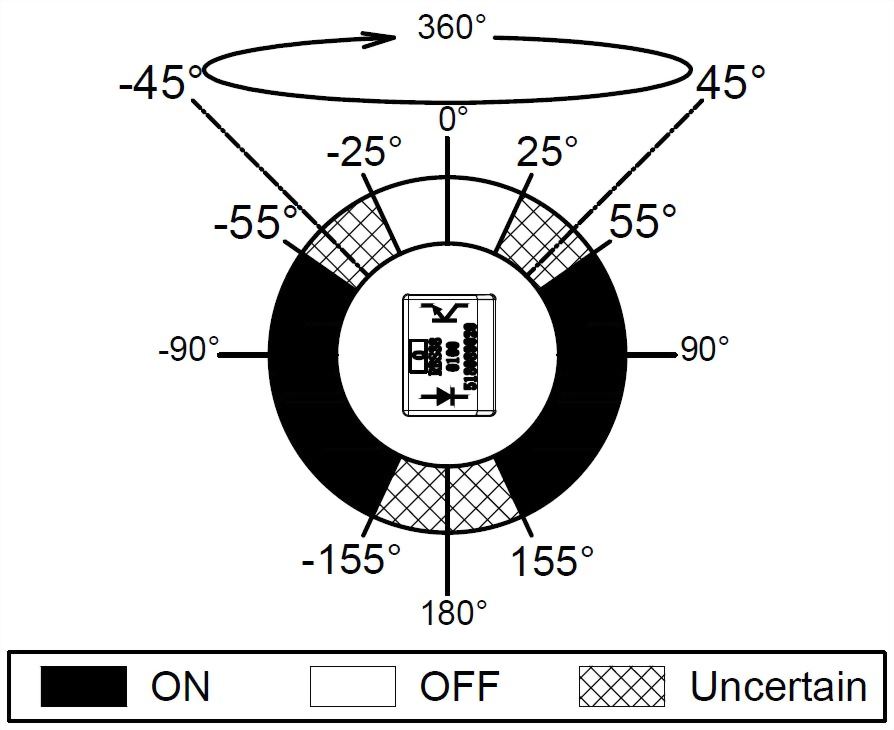

Operating Angle |
45° |
30° |
45° |
30° |
| Type | DIP |
DIP |
DIP |
DIP |
|
Dimension (mm) |
8*10.5*10 |
8*10.5*10 |
8*10.5*8.5 |
8*10.5*8.5 |
|
PCB direction |
Horizontal |
Horizontal |
Horizontal |
Horizontal |
Reliable Test Items
- Operating Temperature: -25°C ~ 85°C
- Storage Temperature: -40°C ~ 85°C
- Humidity: 40°C / 95%RH
- Mechanical Life: 2 HZ,horizontal 1,000,000 times
- Electrical Life: IF=20 mA, VCE=5V TIME: 30,000 hrs
Current / Voltage Suggested
| Model | Input Current (mA) | Operating Voltage (V) |
Condition |
|
RBS400100
|
10 |
3.3 |
VCE=3.3V RD=200 ohm RL=15K ohm |
| 10 | 5 |
VCE =5V RD=390 ohm RL=22K ohm |
|
|
RBS400101
|
10 | 3.3 |
VCE=3.3V RD=200 ohm RL=68K ohm |
| 10 | 5 |
VCE=5V RD=390 ohm RL=100K ohm |
- Function: Tilt within a 360° radius detecting / Vibration detecting
- Housing made of high insulation plastic material, free from electric conduction and rust problem.
- Detecting with photo transistors, generating highly reliable and stable signals.
-
Conductive rate is higher, nearly 100%.
- All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
- Simple ON and OFF signals, easy for design.
- RoHS compliance, an ideal substitute for mercury switch.
- A more economical tilt and rotation detection option than IC design solution.
- Do not try to clean the switch with a solvent or similar substance after the soldering process.
-
All made in Taiwan and Examined before shipment.
- For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.
As for the Roll Ball Switches, a tiny ball in the switch rolls when motion is detected, an alteration of a light path. This will generate the conductive or non-conductive status.They provide accurate control for a wide variety of applications like any angle change detecting or vibration detecting and so on.
