Optical Tip Over Sensor Switch for Horizontal Mount PCB

  • RBS36 Optical Tip Over Sensor Switch for Horizontal Mount PCB

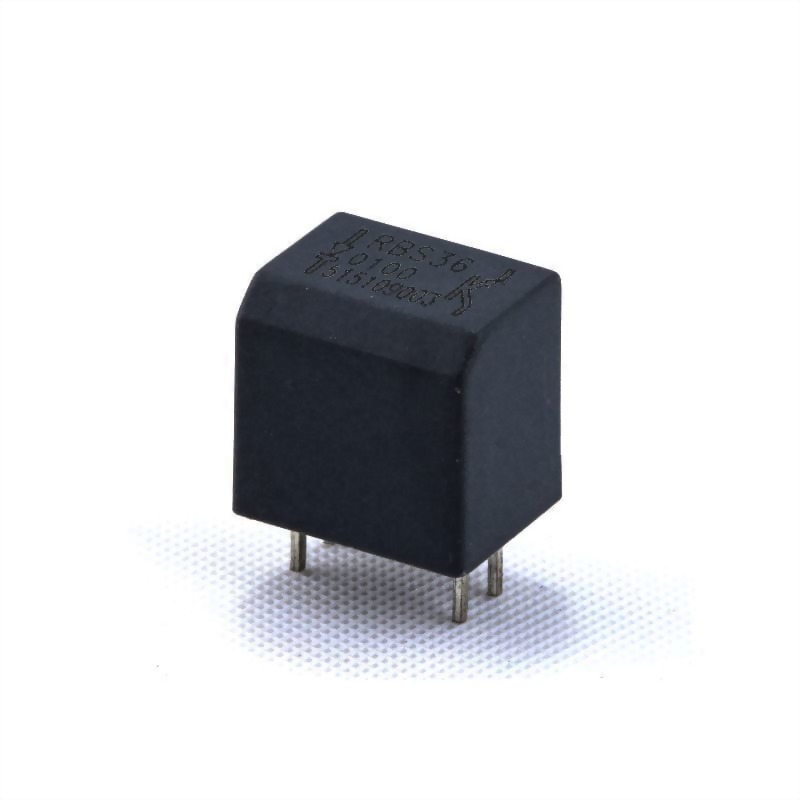

  • RBS360100 Optical Tip Over Switch 45° for Horizontal Mount PCB

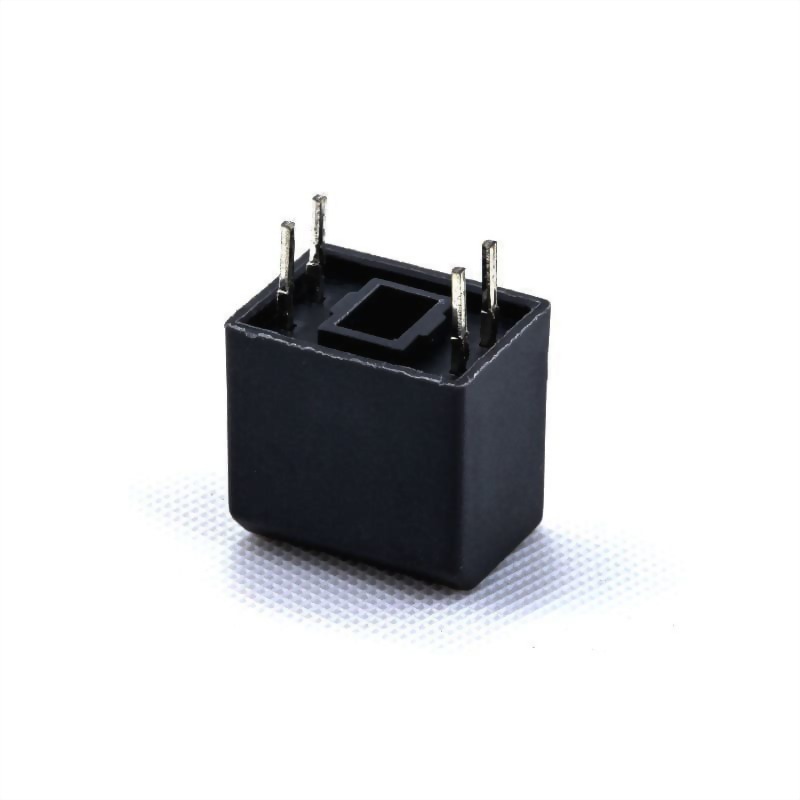

  • RBS360101 Optical Tip Over Switch 30° for Horizontal Mount PCB

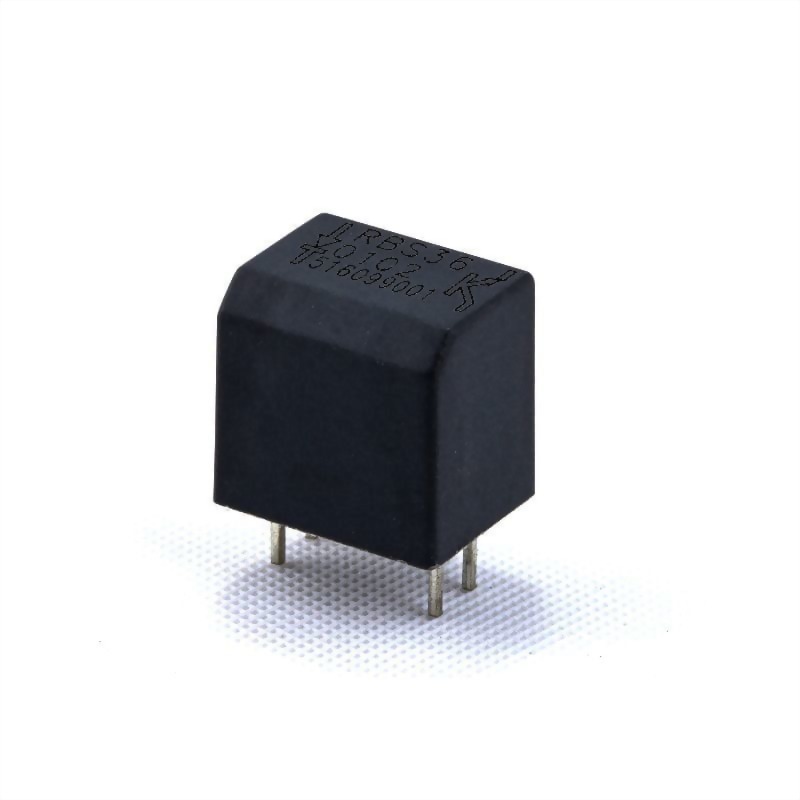

  • RBS360102 Optical Tip Over Switch 20° for Horizontal Mount PCB

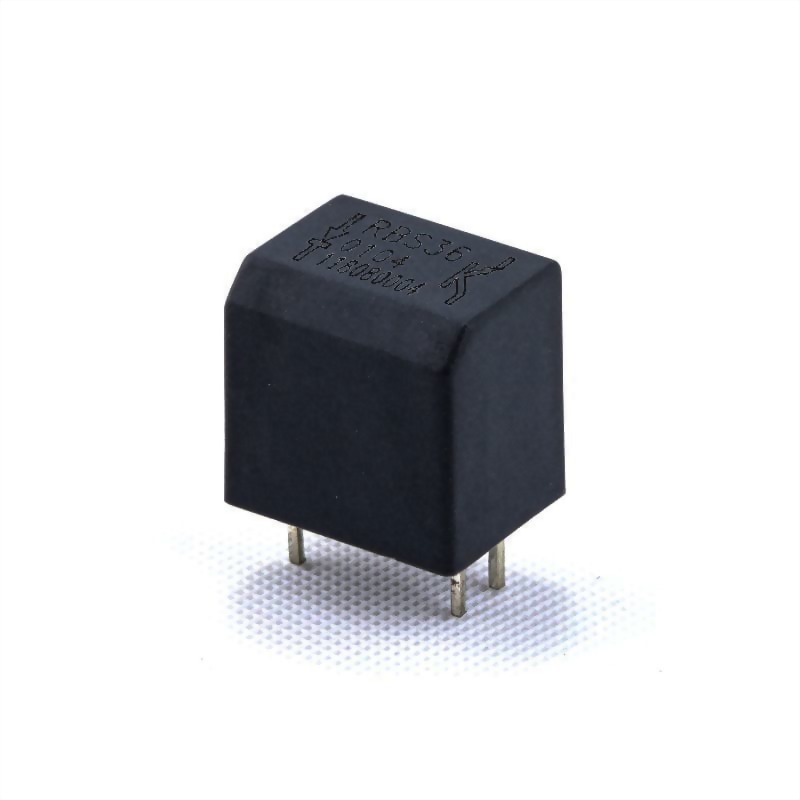

  • RBS360104 Optical Tip Over Switch 65° for Horizontal Mount PCB
● Description: Photoelectric Tip Over Switch
● Mercury Switch Alternative
● Function: Tilt within a 360° radius detecting / Vibration detecting
● Tilt Angle: ​20°, ​30°, 45°, 65°
● Horizontal PCB Mount
● Certification: RoHS,REACH,Patent
● Original: Taiwan

Please select which you want to ask the following product specifications:

*Model:



RBS360100 Optical 45° Tip Over Switch
RBS360101 Optical 30° Tip Over Switch
RBS360102 Optical 20° Tip Over Switch
RBS360104 Optical 65° Tip Over Switch
Model
RBS360100
RBS360101
RBS360102
RBS360104
Operating Angle
45°
30°
20°
65°
Type DIP DIP
DIP
DIP
Dimension (mm)
8*10.5*10
8*10.5*10
8*10.5*10
8*10.5*10
PCB direction
Horizontal Horizontal
Horizontal
Horizontal


Reliable Test Items

  • Operating Temperature: -25°C ~ 85°C
  • Storage Temperature: -40°C ~ 85°C
  • Humidity: 40°C / 95%RH
  • Mechanical Life: HZ,horizontal  1,000,000 times
  • Electrical Life: IF=20 mA,  VCE=5V  TIME: 30,000 hrs


Current / Voltage Suggested

Model Input Current (mA) Operating Voltage (V) Condition

RBS360100

RBS360104

10
3.3 VCE=3.3V  RD=200 ohm  RL=15K ohm
10 5 VCE =5V  RD=390 ohm  RL=22K ohm

RBS360101

RBS360102

10 3.3 VCE=3.3V  RD=200 ohm  RL=68K ohm
10 5  VCE=5V  RD=390 ohm  RL=100K ohm


  • Function: Tilt within a 360° radius detecting / Vibration detecting
  • Housing made of high insulation plastic material, free from electric conduction and rust problem.
  • Detecting with photo transistors, generating highly reliable and stable signals.
  • Conductive rate is higher, nearly 100%.
  • All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
  • Simple ON and OFF signals, easy for design.
  • RoHS compliance, an ideal substitute for mercury switch.
  • A more economical tilt and rotation detection option than IC design solution.
  • Do not try to clean the switch with a solvent or similar substance after the soldering process.
  • All made in Taiwan and Examined before shipment.
  • For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.

As for the Roll Ball Switches, a tiny ball in the switch rolls when motion is detected, an alteration of a light path. This will generate the conductive or non-conductive status.They provide accurate control for a wide variety of applications like any angle change detecting or vibration detecting and so on.


Case of RBS36 series



Heater

Function: Automatic Power-Off
Model: RBS360100 / RBS360101



Sweeping Robots

Function: Automatic Power-Off
Model: RBS360100 / RBS360101



Air Purifier Machine

Function: Automatic Power-Off
Model: RBS360100 / RBS360101
