Photo Tilt Sensor for SMT Vertical Mount PCB

  • RBS3109 Photo Tilt Sensor for SMT Vertical Mount PCB RBS3109

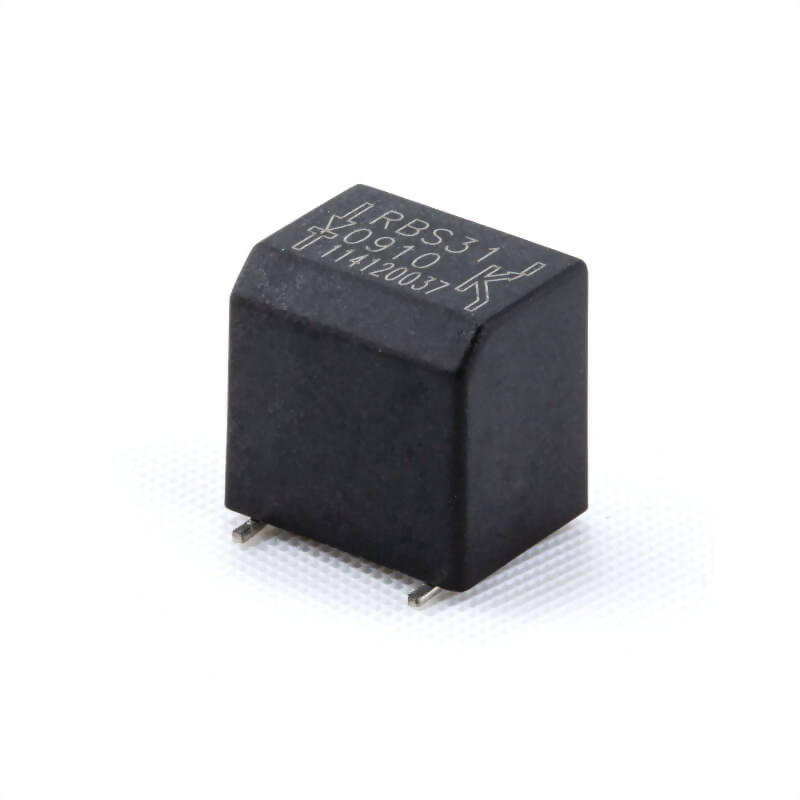

  • RBS310910T Photo Tilt Sensor 45° for SMT Vertical Mount PCB
  • RBS3109111T Photo Tilt Sensor 30° for SMT Vertical Mount PCB

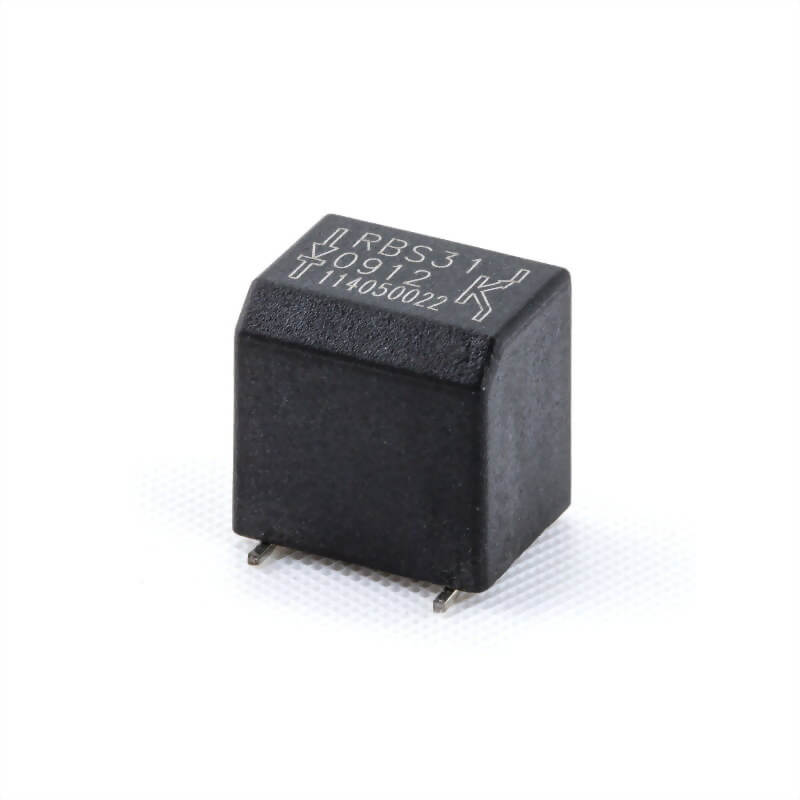

  • RBS310912T Photo Tilt Sensor 20° for SMT Vertical Mount PCB

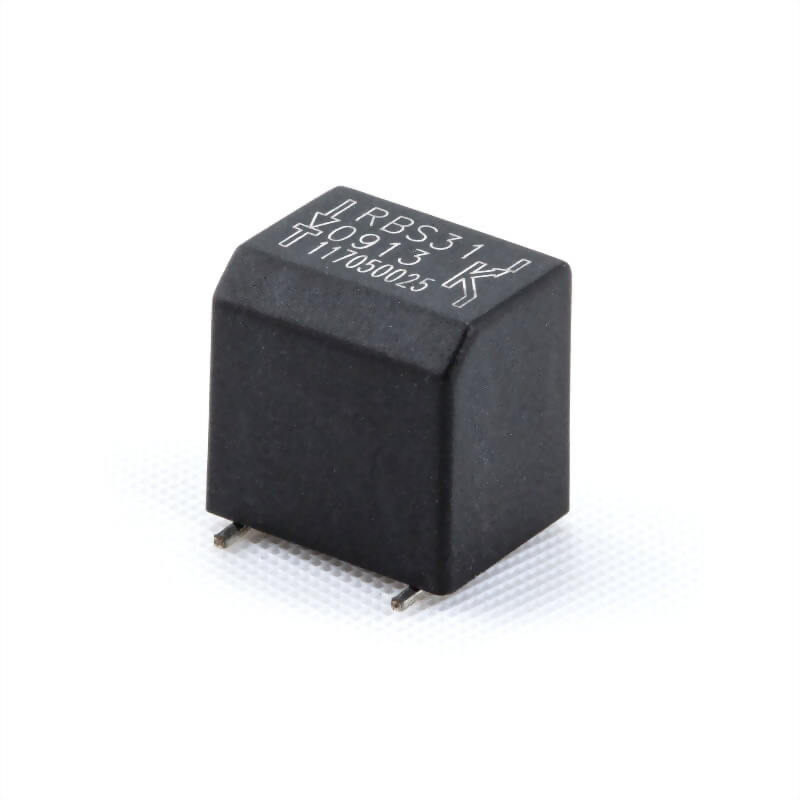

  • RBS310913T Photo Tilt Sensor 15° for SMT Vertical Mount PCB
● Description: Optical Tilt Switch
● Function: Omnidirectional Tilt detecting / Vibration detecting
● Tilt Angle: 15°,​20°,​30°,​45°
● SMT Vertical PCB Mount
● Conductive Rate: Nearly 100%
● Non Mercury Tilt Switch
● Certification: RoHS,REACH,Patent
● Origin: Taiwan

Please select which you want to ask the following product specifications:

*Model:



tilt sensor RBS310910T
tilt sensor RBS310911T
tilt sensor RBS310912T
tilt sensor RBS310913T
tilt sensor RBS310942T
Model RBS310910T
RBS310911T
RBS3110912T
RBS310913T
RBS310942T
Angle 45°
30°
20°
15°
20°
Type
SMD
SMD
SMD
SMD
SMD
Dimension (mm)
8*10.5*10
8*10.5*10
8*10.5*10
8*10.5*10
8*10.5*10
PCB direction
Vertical
Vertical
Vertical
Vertical
Vertical
Operating Temperature -25℃~85℃
-25℃~85℃
-25℃~85℃
-25℃~85℃
-40℃~85℃


Reliable Test Items

  • Operating Temperature: -25°C ~ 85°C
  • Storage Temperature: -40°C ~ 85°C
  • Humidity: 40°C / 95%RH
  • Mechanical Life: 2HZ,horizontal  1,000,000 times
  • Electrical Life: IF=20 mA,  VCE=5V  TIME: 30,000 hrs


Current / Voltage Suggested

Input Current (mA) Operating Voltage (V) Condition
10
3.3 VCE=3.3V  RD=200 ohm  RL=33K ohm
10 5 VCE=5V  RD=390 ohm   RL=33K ohm


  • Function: 15° ,20°, 30° ,45° within a 360° radius tilt detecting / Slight Vibration detecting
  • Housing made of high insulation plastic material, free from electric conduction and rust problem
  • Detecting with photo transistors, generating highly reliable and stable signals.
  • Conductive rate is higher, nearly 100%.
  • All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
  • Simple ON and OFF signals, easy for design.
  • RoHS compliance, an ideal substitute for mercury switch.
  • A more economical tilt and rotation detection option than IC design solution.
  • All made in Taiwan and Examined before shipment.
  • Do not try to clean the switch with a solvent or similar substance after the soldering process.
  • For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions

As for the Roll Ball Switches, a tiny ball in the switch rolls when motion is detected, an alteration of a light path. This will generate the conductive or non-conductive status.They provide accurate control for a wide variety of applications like any angle change detecting or vibration detecting and so on.


Case of RBS3109 series



Heater

Function: Automatic Power-Off
Model: RBS310910T / RBS310912T



Air Purifier Machine

Function: Automatic Power-Off
Model: RBS310910T / RBS310912T

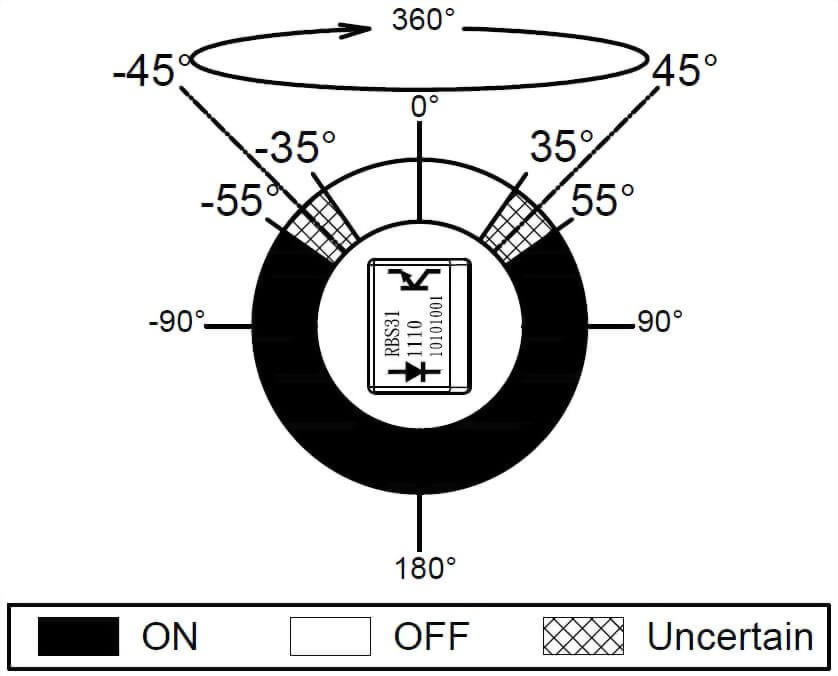

OncQue RBS311110 Photoelectric Tilt Switch for Vertical PCB
